BEG感光器PD4-M系列技術參數
Technical Data | |
Voltage: | 110 – 240 V AC 50 / 60 Hz |
Dimensions: | ? 98 x 63 mm |
Power consumption: | approx. 0.5 W |
Detection area: | horizontal 360° oval (Ceiling mounting) |
Range: | 30 m x 19 m |
Monitored area (tangential movement): | 440 m2 / 14 m mounting height |
Mounting height min./max./recommended: | 5 m / 16 m / 14 m |
Degree / class of protection: | IP20 / Class II |
Impact strength: | IK04 |
Ambient temperature: | -25 °C to +50 °C |
Housing: | polycarbonate, UV-resistant |
Channel 1 (lighting control, potential-free (dry)) | |
Switching power: | 2300 W, cos φ = 1 |
Type of contact: | 1x μ-contact, dry NO contact with tungsten pre-make contact |
Switch-on threshold: | 20 – 2000 Lux |

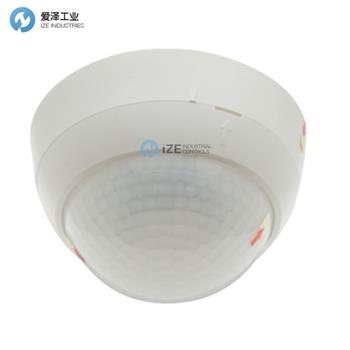

BEG感光器PD4-M系列產品介紹
Product Information
Occupancy detector designed for high-bay warehouses
One potential-free (dry) switching contact
Version as master device
Detection area can be extended with slave devices
Easy operation with remote control (required)
Manual switching via push-button possible
There are markings to ensure correct alignment during installation
When used in high-bay warehouses, care should be taken that, in the cross-aisles of the warehouse, detectors are installed that can detect movement only in the desired aisle locations, by using blinds or other technical arrangements.
Factory settings 3 min and 1000 lux
Application examples:
high-bay warehouse, sports halls/ storage rooms
產品信息
專為高架倉庫設計的占用探測器
一個無電位（干式）開關觸點
作為主設備的版本
檢測區域可通過從設備擴展
使用遙控器輕松操作（必需）
可通過按鈕手動切換
有標記以確保在安裝過程中正確對齊
在高架倉庫中使用時，應注意在倉庫的交叉過道中安裝檢測器，該檢測器只能通過使用百葉窗或其他技術裝置檢測所需過道位置的移動。
出廠設置 3 分鐘和 1000 勒克斯
應用實例：
高架倉庫、體育館/儲藏室
BEG感光器PD4-M系列
BEG PD4-M-1C
BEG PD4-M-1C-GH
BEG PD4-M-1C-C
BEG PD4-M-1C-C-PS
BEG PD4-M-TRIO-K-3P
BEG PD4-M-1C-GH-SM
