DR. H?NLE AG紫外線燈A031754N技術參數
Electrical Data | |
specific lamp power W/cm | 200 |
lamp power W | 7200 |
lamp voltage V | 440 |
lamp current A | 16 |
ignition voltage V | 660+ ZG |
mains voltage 1) V | |
short circuit current, max. A | 32 |
Geometrical Data | |
arc length (dimension EA) mm | 356 |
overall length (dimension Lg) mm | 446 +2/-2 |
tube diameter (dimension d) mm | 24,5 |
wire length (dimension Ll) mm | 90 / 90 |
Physical Lamp Data | |
radiation flow UV-C (200 – 280 nm) W | 1080 |
radiation flow UV-B (280 – 315 nm) W | 580 |
radiation flow UV-A (315 – 400 nm) W | 500 |
General Data | |
sealing temperature Tmax ° C | 350 at point T |
tube temperature, min - max ° C | 600 – 900 |
base | ceramic |
tube material | quartz, ozone-producing |
doping | mercury |
useful lifetime hours | 1500 - 3000 |

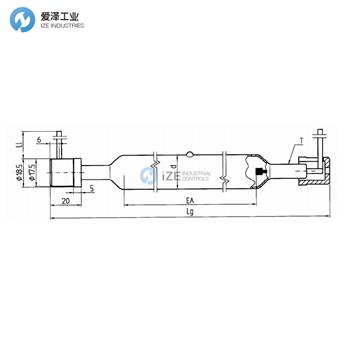

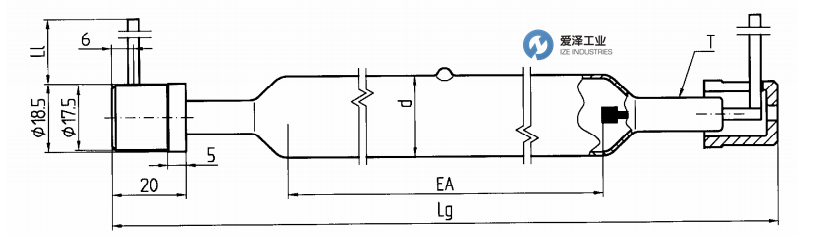

DR. H?NLE AG紫外線燈尺寸圖
DR. H?NLE AG紫外線燈其他常用型號:
DR. H?NLE AG A031754N
DR. H?NLE AG UV lamp NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DR. H?NLE AG紫外線燈A031754N的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for DR. H?NLE AG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
DR. H?NLE AG紫外線燈A031754N介紹及技術參數
