LUMEN DYNAMICS UV燈OmniCure LX500 MAX HEADS系列技術參數
GENERAL SPECIFICATIONS | |
UV LED Light Wavelength | 365 nm | 385 nm | 400 nm |
Typical Peak Irradiance | 14 | 16 | 9 W/cm2 respectively with 3 mm lens |
Typical LED Lifetime | 20,000 hours |
LED Temperature Monitoring | LED temperature monitoring and over temperature protection by patented Intelli-Lamp? technology |
LED Lifetime Monitoring | LED number of hours of operation monitored by patented Intelli-Lamp technology |
Cable Included with the Head | Length: 1 meter (Extension cables also available: 1 m, 3 m and 10 m) |
Head Dimensions | Head outside diameter: 12 mm |
Light Source | LED Class, Risk Group 3 |
Certifications & Safety Standards | RoHS compliant and meets CE requirements |
Warranty | Guarantee of 10,000 hours or 3 years, whichever comes first. |
LUMEN DYNAMICS UV燈OmniCure LX500 MAX HEADS系列介紹
OmniCure?UV LED MAX噴頭經過專門設計，可提供更快的UV固化速度，更高的功率效率以及卓越的控制與監控能力。UV LED MAX燈頭通過銅芯和優化的鋁制散熱片提供出色的熱管理，用于吸收和散發LED產生的內部熱量，即使在最具挑戰性的制造環境中，也可以提高空氣冷卻效率。OmniCure LX500 MAX磁頭具有一個連接器，旨在更輕松地安裝到控制器上，并鎖定在適當?shù)奈恢靡源_保牢固連接。

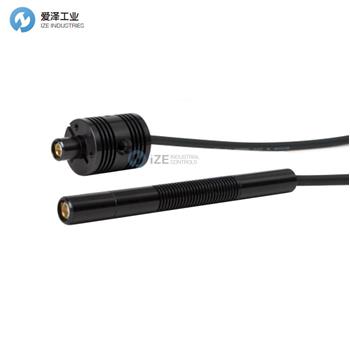

The OmniCure? UV LED MAX Heads are specially designed to provide faster UV curing rates, higher power efficiency and superior control with monitoring capabilities. UV LED MAX Heads provide superior thermal management by means of a copper core and optimized aluminum heat sink used to extract and dissipate internal heat generated by the LED, allowing enhanced air-cooling efficiency in even the most challenging manufacturing environment. The OmniCure LX500 MAX heads feature a connector designed for easier installation to the controller which locks in place for a secure connection.

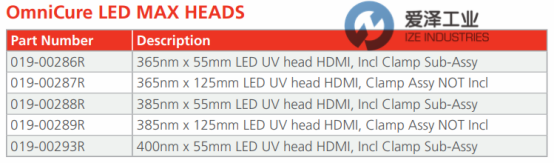

LUMEN DYNAMICS UV燈OmniCure LX500 MAX HEADS系列選型
LUMEN DYNAMICS UV燈OmniCure LX500 MAX HEADS系列其他常用型號：
LUMEN DYNAMICS 019-00286R
LUMEN DYNAMICS 019-00287R
LUMEN DYNAMICS 019-00288R
LUMEN DYNAMICS 019-00289R
LUMEN DYNAMICS 019-00293R
LUMEN DYNAMICS LED UV MAX Heads NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LUMEN DYNAMICS UV燈019-00287R的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for LUMEN DYNAMICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
LUMEN DYNAMICS UV燈019-00287R選型介紹
