LUXO照明放大鏡WAL025952技術參數
Technical specifications | |
Magnifier | |
Primary Lense | 3,5 |
Magnifier Size PrimLense | 175 |
Magnification | 188 |
Magnifier Focal Distance | 285.7 |
Focal Length | 285 |
Magnifier Lux Work distance | 4600 |
Technical Data | |
Maximum TA (oC) | 25 |
Light Technical Data | |
Light source | LED |
Lumen Out (lm) | 764 |
Lumen Per Watt (lm/W) | 59 |
Lamp colour temp K | 4000 |
Colour Rendering Index | 80 |
MacAdam step | 3 |
Energy Class Light Source | D |
Lifetime | |
Luminous flux decline LLMF 50.000h Ta25 | 0.8 |
Electrical Data | |
Leakage Current (mA) | 0.1 |
Main Feed AC V Min | 220 |
Main Feed AC V Max | 240 |
Main Feed Frequency Min | 50 |
Main Feed Frequency Max | 60 |
Total Consumption (W) | 13 |
Housing | |
Body Colour | White |
Main Body Colour Name | White |
Dimensions | |
Length (mm) | 224 |
Width (mm) | 227 |
Height (mm) | 70 |
Item Net Weight (kg) | 4.3976 |
Termination | |
Plug Type | UK |
Mounting | |
Mounting Accessories | CLA |
Product Mounting | Table |
Logistic Data | |
Item Gross Weight (kg) | 4.78 |
LUXO照明放大鏡WAL025952產品介紹
Wave LED 是一款適用于工業應用的照明放大鏡,配有 2 個 400 流明 LED 光源和靈活的自平衡臂。它提供無陰影放大功能(光線來自兩側)以及三維放大功能(光線來自左側或右側)。

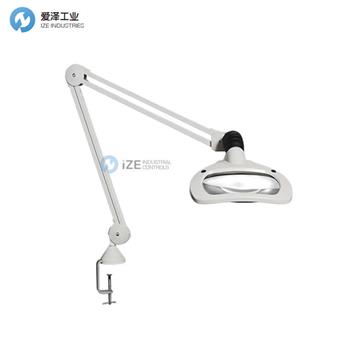

Wave LED is an illuminated magnifier for industrial applications, with 2 400lumen LED light sources and a flexible self-balancing arm. It offers shadow-free magnification with light coming from both sides, as well as three-dimensional magnification with light coming from the left or right.
LUXO放大鏡WAL系列其他常用型號:
LUXO WAL025948
LUXO WAL025950
LUXO WAL025949
LUXO WAL025951
LUXO WAL025952
LUXO WAL025953
LUXO WAL025955
LUXO WAL025954
