FDC爆破片KSRRCHD技術規格
Division | KSRRCHD |
Design | Composite Dome Flat Seat Type |
Description | It is used with installation on FDC standard holder |
Standard | ASME Code Sec.VIII, KS B ISO 4126, API RP520, KOSHA Code, FDC Standard |
Size | 1/2" ~ 48" |
Set. Pressure | 0.05 ~ 50kg/? |
Material | C.S, SUS, Duplex, Nickel, Inconel, Monel, Hastelloy, Titanium, Tantalium, Special Alloy, Aluminum |
Fragment | No |
Process Media | Gas, Vapor, Liquid |
Max. Operating Ratio | 80% |
Spark | No |
Option | Pressure Gauge, Burst Sensor, Excess Flow Valve, Alarm System, Long & Short Nipple, Junction Box, Stud Bolt/Nut, PFA/PTFE Coating, Jack Screw, Tee, J-Hook, Plug, Pressure Switch, Reducer |
FDC爆破片KSRRCHD產品介紹

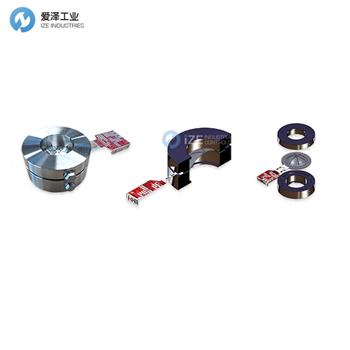

Design
Composite Dome Flat Seat Double Acting Type
It is used with installation on FDC standard holder
Composite/Dome structure ruptured by slit processed on Top disc
It consists of Top disc, Seal disc and Vacuum disc
Product Features
Possible to set differently rupture pressure to each direction
It is applied to low pressure mainly
Resistant to corrosion according to Seal Disc materials
Precise rupture performance and excellent reliability
Vulnerability to pulsation conditions
If Teflon in used as Seal Disc material, it is weak to high temperature
Limited temperature range by Seal Disc material
設計
復合圓頂平座雙作用型
安裝在FDC標準支架上使用
復合材料/圓頂結構因在 Top 圓盤上加工的縫隙而破裂
它由頂盤、密封盤和真空盤組成
產品特點
可以為每個方向設置不同的破裂壓力
主要應用于低壓
根據密封盤材料耐腐蝕
精確的斷裂性能和出色的可靠性
易受脈動條件影響
如果使用聚四氟乙烯作為密封盤材料，它對高溫很脆弱
密封盤材料限制溫度范圍
FDC爆破片其他常用型號：
FDC KSRRCHD
FDC KSRRCFD
FDC KSROD
FDC KSRRLD
