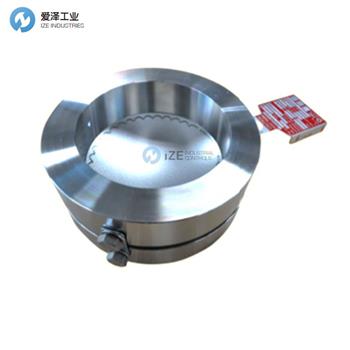

FDC爆破片KSRBKH技術規格
Division | KSRBKH |
Design | Reverse Dome Buckling Knife Type |
Description | It is used with installation on FDC standard holder |
Standard | ASME Code Sec.VIII, KS B ISO 4126, API RP520, KOSHA Code, FDC Standard |
Size | 1/2" ~ 36" |
Set. Pressure | 0.1 ~ 50kg/? |
Temperature | Max.593℃ |
Material | C.S, SUS, Duplex, Nickel, Inconel, Monel, Hastelloy, Titanium, Tantalium, Special Alloy, Aluminum |
Fragment | No |
Process Media | Gas, Vapor, Liquid |
Max. Operating Ratio | 90% |
Spark | No |
Option | Pressure Gauge, Burst Sensor, Excess Flow Valve, Alarm System, Long & Short Nipple, |
FDC爆破片KSRBKH系列介紹
Design
Reverse Dome Buckling Knife Type
It is used with installation on FDC standard holder
It consists of Control Disc and Seal Disc
Ruptured while dome is sheared by Knife of Control Disc
Product Features
Can be used for all materials such as Liquid, Gas, Steam, Vapor, Sludge, and Resin
Highly safe and resistant to corrosion
Favourable for counterpressure, vacuum and pulsation conditions
Vacuum Support is needless
Wide range of workable temperature
Long life of disc as there is small gap between working pressure and rupture pressure
Easy to handle with strong impact resistance
Precise rupture performance and excellent reliability
Patent protected
設計
反圓頂屈曲刀型
安裝在 FDC 標準支架上使用
它由控制盤和密封盤組成
圓頂被控制盤的刀剪斷時破裂
產品特點
可用于液體、氣體、蒸汽、蒸汽、污泥和樹脂等所有材料
高度安全和耐腐蝕
有利于反壓、真空和脈動條件
真空支撐是不必要的
工作溫度范圍廣
由于工作壓力和破裂壓力之間的差距很小，因此閥瓣壽命長
易于操作，抗沖擊性強
精確的斷裂性能和出色的可靠性
專利保護
FDC爆破片其他常用型號：
FDC KSRR
FDC KSRRKF
FDC KSRBKH
FDC KSRBK
FDC KSRSR
FDC KSRSF
FDC KSRST
FDC KSRCT
FDC KSRC
FDC KSRRCH
FDC KSRRC
FDC KSRRCF
FDC KSRRCFD
FDC KSROH
FDC KSROF
FDC KSROHD
FDC KSROFD
FDC KSRRL
FDC KSRRLD
FDC KSROL
