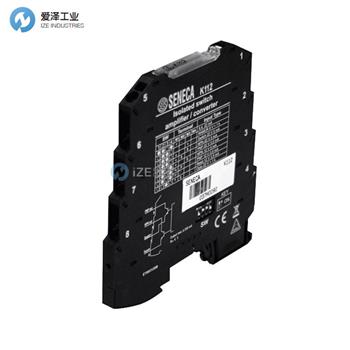

SENECA隔離模塊K112技術參數
TECHNICAL DATA | |
ORDER CODE : | K112 |
DESCRIPTION: | Universal digital coupler/isolator |
POWER SUPPLY: | 19,2-30 V |
INPUT: | Contact (IEC 1131.1 tipo 1), Namur (DIN 19234, EN 60947), NPN or PNP (12 or 22 V) 2/3 wires, reed, photocell, max frequency 400 Hz |
POWER TRANSDUCER: | 8±0,6 V, 12±1 V, 22±2 V |
OUTPUT: | Simultaneous PNP and NPN, max current 200 mA, max voltage 30 V (continuous), 50 V (pulse) |
INSULATION: | 1,5 kVac @ 2-way |
CONNECTION: | Spring clamp, SMART SUPPLY technique |
COMPACT DIMENSION: | 93,1 x 102,5 x 6,2 mm (l x h x d) |
OPERATING TEMPERATURE: | -10..+65°C |
SENECA隔離模塊K112介紹
The K112 isolation module has been designed to adapt specific on/off sensors to a standard NPN and/or PNP connection. It's a useful solution to interface a proximity sensor with a plc. The two outputs (PNP and NPN) can be utilized simultaneously. A 2-way galvanic isolation among input // output circuits assures the integrity of your datas.
K112隔離模塊設計用于使特定的開/關傳感器適應標準NPN和/或PNP連接。這是將接近傳感器與plc連接的有用解決方案。兩個輸出（PNP 和 NPN）可以同時使用。輸入//輸出電路之間的2路電流隔離可確保數據的完整性。
SENECA隔離模塊其他常用型號：
SENECA K112
SENECA K111
SENECA K111D
