RITTAL開關9343210產品參數
Specification | |
Material | Fire protection corresponding to UL94-V0 Contact tracks: Electrolytic copper silver-plated Polyamide (PA 6) |
Color | |
Chassis: | RAL 7035 |
Cover: | RAL 7035/7001 |
Basis of test | IEC 60 269-2 (fuse inserts) |
Version | 2 |
Notes | The technical data may vary in the case of UR applications. UR applications only in conjunction with "Special Purpose Fuses". |
Suitable for busbars | 10 mm (0.39 ") |
Number of poles | 3-pole |
For bar systems with center-to-center spacing | 60 mm |
Dimensions | Height: 298 mm (12 ") |
Clamping area for laminated copper bars | Height: 10 mm (0.39 ") |
Type of connection (electrical) | Screw M10 |
Connection for round conductor cross-sections | 10mm2 - 240mm2 |
Rated operating current max. | 400 A |
Cable outlet | Top/bottom |
Packaging unit | 1 pc(s). |
Weight/packaging unit | 3.36 kg (7.4 lb.) |
EAN | 4.02818E+12 |
Customs tariff number | 85369095 |
ETIM 6.0 | EC001040 |
ETIM 5.0 | EC001040 |
eCl@ss 8.0/8.1 | 27371401 |
eCl@ss 7.0/7.1 | 27371401 |
eCl@ss 6.0/6.1 | 27371401 |
eCl@ss 5.1/5.1.4 | 27370302 |

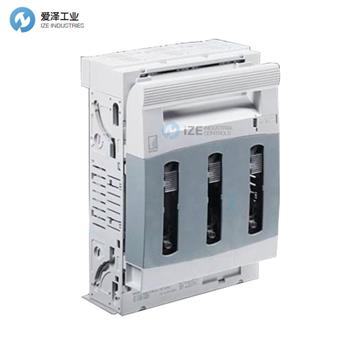

Product description (long) | SV NH fuse-switch disconnector size 2 400 A 690 V 3-pole screw M10 |
