SCS抗靜電手環及接地鞋測試儀770750規格描述
specification | |
Nutrition | 12V DC |
Accuracy | ± 20 for shoe grounding range up to 1GΩ |
Button voltage | 5V post current open circuit |
Test voltage | 30V post current open circuit |
Test current | Limited to the choice of restraining resistance |
Work temperatures | 21 ℃ - 30 ℃ for the limit up to 1GΩ |
Working conditions | Only in rooms at an altitude of less than 2 km |
SCS抗靜電手環及接地鞋測試儀770750產品介紹

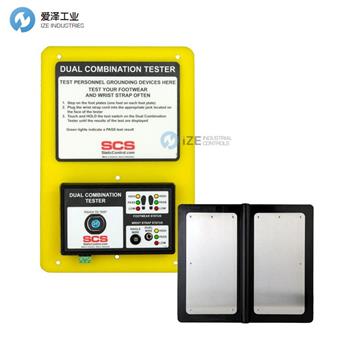

SCS 770750組合式腕帶測試儀用于定期檢查防靜電腕帶和接地鞋。設備確定防靜電腕帶和鞋子接地是否正常工作。當綠色LED點亮時，按下測試按鈕時，表明您的抗靜電保護正在起作用。紅色或黃色指示器與聲音信號一起指示抗靜電保護功能失敗。在這種情況下，測試儀會顯示檢測到了哪種違規-接地電阻過高或過低。
組合式測試儀配備了可靠的固態固態開關，該開關用彈簧和活動部件代替了傳統的接觸開關。交換機具有外部和內部金屬部件，這些部件被人的皮膚封閉。該測試儀用于測試單回路和雙回路手鐲。組合測試儀由隨附的SCS 770752電源適配器供電。
The SCS 770750 combined wristband tester is used to regularly check antistatic wristbands and grounding shoes. The device determines if the antistatic wristband and shoe grounding are working correctly. When a green LED is lit, when the test button is pressed, it indicates that your antistatic protection is working. Red or yellow indicators in combination with a sound signal indicate a failure of the antistatic protection. In this case, the tester shows what kind of violation has been detected - with an excess or understatement of the ground resistance.
The combined tester is equipped with a reliable, solid-state solid-state switch that replaces a traditional contact switch with a spring and moving parts. The switch has external and internal metal parts that are closed by human skin. The tester is used to test both single-circuit and double-circuit bracelets. The combined tester is powered by the SCS 770752 power adapter included.
SCS抗靜電手環及接地鞋測試儀其他型號：
SCS 770750
SCS 770751
SCS 770752
SCS 770755
SCS 770030
SCS combined wristband tester NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCS抗靜電手環及接地鞋測試儀770750的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SCS抗靜電手環及接地鞋測試儀770750產品參數
