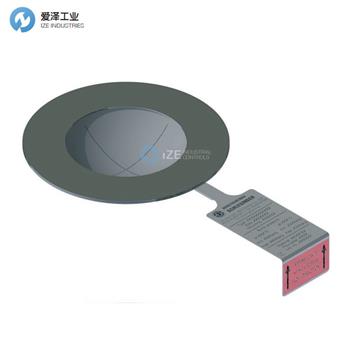

SCHLESINGER爆破片UX50R5-05SI /1技術參數
Burst pressure | 5 barg ± 10% |
Temperature | 135°C |
Operating pressure | max. 4 barg |
Vacuum-resistant | |
Material | Stainless steel |
With flag for signal transmitter | |
Nominal diameter | 1.5" |
Clamping | Clamp screw connection |
SCHLESINGER爆破片UX系列介紹
逆作用式爆破片是帶缺口的一體式部件，由鎳、鎳基材料（鉻鎳鐵合金、哈氏合金）或不銹鋼制成。它們主要用于中高壓、高工作溫度和壓力波動較大的工藝過程。逆作用式爆破片的壓紋位于非承壓側，而工藝側表面光滑，可防止介質粘附。
十字缺口逆作用式爆破片（UX 型）以其緊湊的設計而著稱。
優勢：
? 材料、壓力和尺寸的個性化產品規格
? 適用于中高壓
? 耐腐蝕、耐高溫以及耐壓力變化
? 全金屬結構，完全耐真空且氣密
? 泄漏率極低
? 集成爆破監控
Reverse-acting rupture discs are notched, one-piece components made of nickel, nickel-based materials (Inconel, Hastelloy), or stainless steel. They are primarily used in processes with medium to high pressures, high operating temperatures, and large pressure fluctuations. The embossing on the non-pressure-bearing side of the reverse-acting rupture disc is smooth on the process side to prevent media adhesion.
Our cross-notch reverse-acting rupture discs (UX type) are distinguished by their compact design.
Advantages:
? Customizable product specifications for material, pressure, and dimensions
? Suitable for medium to high pressures
? Resistant to corrosion, temperatures, and pressure fluctuations
? All-metal construction, completely vacuum-proof and gas-tight
? Extremely low leakage rates
? Integrated burst monitoring
SCHLESINGER爆破片UX系列其他常用型號：
SCHLESINGER UX50R5-05SI /1
SCHLESINGER UX63R2-05SI /1
SCHLESINGER rupture disc NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHLESINGER爆破片 UX50R5-05SI /1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHLESINGER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
