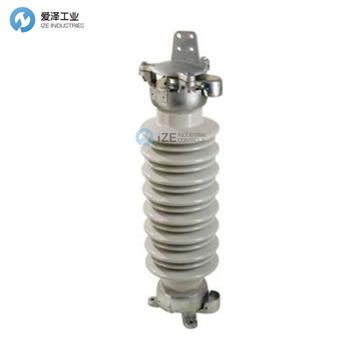

GENERAL ELECTRIC避雷器9L11ZGA004AS技術參數
Characteristics | |
Rated voltage | 5 kVrms |
Mcov | 3.70kVrms |
Mass | 34kg (76lb) |
Creepage distance | 157 (6.2) |
Lightning imp w/s | 95 kV |
Switching imp w/s | 76 kV |
Power freq w/s | 30 kVrms |
Tov 1s | 5.4 kVrms |
Tov 10s | 5.2 kVrms |
Cog above base | 196 (7.7) |
Housing | GREY PORCELAIN |
Cantilever force | |
Maximum continuous | 6512 N (1464lbf) |
Ultimate (ums) | 16279 N (3660lbf) |
Recommended clearance (to metal parts) | |
Phase to ground | 27 (1.1) |
Phase to phase | 53 (2.1) |
GENERAL ELECTRIC避雷器其他常用型號：
GENERAL ELECTRIC 9L11ZGA004AS
GENERAL ELECTRIC 9L11XPB004AS
GENERAL ELECTRIC 9L11ZGB004S
GENERAL ELECTRIC ARRESTERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GENERAL ELECTRIC避雷器9L11ZGA004AS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GENERAL ELECTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
