KIEPE限位開關HER系列技術參數
TECHNICAL DATA | |
Device complies with | EN 60947-5-1 |
Suited for | Control units and systems in accordance with DIN EN 60204 |
Enclosure | Aluminium alloy, GK-AISi12 |
Actuating rller lever | Roller: CuZn39Pb3, lever: AIMgSi1 |
Finish | 2-component DD-tile enamel yellow, RAL 1004 |
Fastening | 2 oblong holes for M 8-bolts |
Cable entry | 2 xM25x1,5 |
Protection rating | IP 67 according to EN 60529 |
Rated insulation voltage Ui | AC 230V, DC 230V |
Protective Conductor Connection | Within enclosure, M5 |
Admissible ambient temperature 1 | - -25*°...+70°C |
Extended ambient temperature | -40°C.. +70°C (Type 7xx) |
Switching elements | Snap acting switches, positive making and self cleaning |
Conventional thermal current Ith | 6A |
Utiliation cathegory Ie/Ue | AC-15: 230V / 1,5V |
Connection cross section | 2,5 mm2 |
Contact reliability | > 30.000 operations |
Mechanical lifecycle | > 10.000 actuations |
Excursion | 75° max. |
Installation position | horizontal prefered horizontal prefered |
Ordering code | 92.064 544.606 |
KIEPE限位開關HER系列介紹
APPLICATION

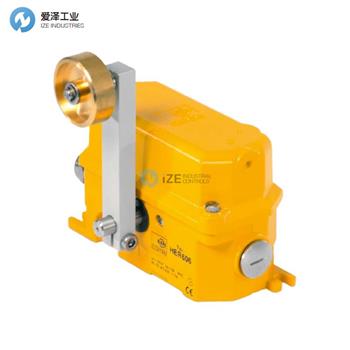

The Kiepe limit switch HER made of aluminum alloy has been designed for a maximum of safe operation under severe conditions to become installed in any bulk handling system (e.g. in open pit mines). All external parts are either of stainless steel or have been specially plated. The trip points – both preset at 10° – can be adjusted between 5° and 35°.
The roller lever with ball bearing is infinitely adjustable on the shaft. The positive making switching elements are cam operated.
The self-cleaning of the contacts by mechanical grinding allows the use in low voltage applications (PLC- or BUS-control)
應用
由鋁合金制成的 Kiepe 限位開關 HER 設計用于在惡劣條件下最大限度地安全運行，可安裝在任何散裝處理系統中（例如露天礦）。 所有外部零件均為不銹鋼或經過特殊電鍍處理。 觸發點——均預設為 10°——可在 5° 至 35° 之間調整。
帶滾珠軸承的滾輪桿在軸上可無限調節。 正閉合開關元件由凸輪操作。
通過機械研磨實現的觸點自清潔允許在低壓應用中使用（PLC 或總線控制）
KIEPE限位開關其他常用型號：
KIEPE HER706
KIEPE limit switch NEW + ORIGINAL+ ONE YEAR WARRANTY
