KIEPE ELECTRIC錯位開關MRS系列技術參數
Technical data | |
Device complies with | EN 60947-5-1 |
Housing | PBT GF20; yellow, similar to RAL 1004 |
Mounting | By means of two M6 bolts |
Cable entry | 3 x M25 x 1,5 |
Protection | IP 67 according to EN 60529 |
Ambient temperature | - 25 °C … + 70 °C |
Switching system | 2 self cleaning changeover contacts |
Switching points | 10° and 25° |
Excursion | 75° max. |
Rated Insulation Voltage Ui | 230V |
Rated impulse withstand voltage Uimp | 2.5kV, Degree of pollution III |
Conventional thermal current Ith | 6 A |
Switching capacity | AC-15: 230 V / 1,5 A |
Enclosure Protection | IP 67 according to EN 60529 |
Connections | 2,5 mm2 max. |
Weight | 0.8 kg |
Ordering code | 91.063 294.001 |
KIEPE ELECTRIC錯位開關MRS系列介紹
Kiepe 皮帶錯位開關 MRS 用于輸送機安裝，以監控輸送機皮帶的真實運行情況。MRS 由纖維增強塑料和不銹鋼制成，具有耐氨性，可在鹽礦、堆肥、回收工廠以及港口區域等極端惡劣的環境中成功運行。
不銹鋼滾輪（直徑 30 毫米）可監控高達 5 米/秒的快速運行輸送機。標準功能包括兩個自清潔開關元件。

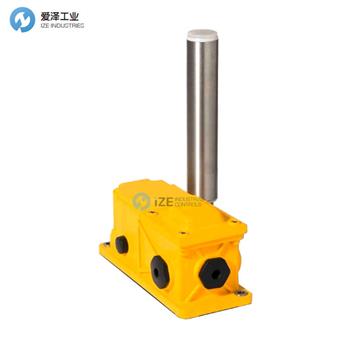

Kiepe Belt Misalignment Switches MRS are used in conveyor installations for monitoring the true running of conveyor belts. Constructed from fibre reinforced plastic and stainless steel the MRS, being resistant to ammonia can successfully operate in extreme and harsh environments such as salt mines, composting, recycling plants as well as harbour areas.
The stainless steel roller (30 mm diam.) permits the monitoring of fast running conveyors up to 5 m/s. Standard features include two self cleaning switching elements.
KIEPE ELECTRIC錯位開關MRS系列其他常用型號：
KIEPE ELECTRIC MRS001
KIEPE ELECTRIC SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KIEPE ELECTRIC錯位開關MRS001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KIEPE ELECTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KIEPE ELECTRIC錯位開關MRS系列MRS001技術參數介紹
