KIEPE拉繩開關HEN系列技術參數
TECHNICAL DATA | |

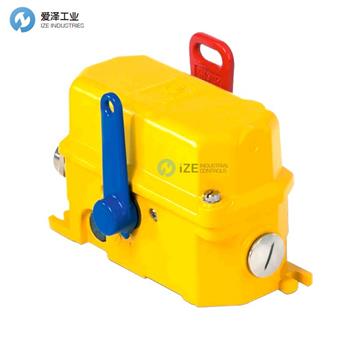

Designation | Pull-rope emergency stop switch type HEN – emergency stop device with latching function |
Type of actuation | Bidirectional; spring-loaded ("snap action") |
Complies with | DIN EN ISO 13850; DIN EN 60204-1; DIN EN 60947-5-5; |
Suited for | Control units and systems in accordance with DIN EN 60204 |
Mechanics | |
Enclosure | Aluminum GK-AISi 12 |
Finish | DD-paint |
Mounting | 2 slotted holes for M8 screws |
Installation position | Horizontal, tilt angle up to about 15° |
Pull-rope length | Up to approx. 100m |
Actuation force | 30N ± 10N |
Weight | 1.7kg |
KIEPE拉繩開關HEN系列介紹
Kiepe HEN 型拉繩緊急停止開關按照 EN 620 和 BGI 710 的要求使用，并符合 DIN EN ISO 13850 作為緊急停止裝置，作為傳送帶系統的補充安全措施。
拉繩對稱地張緊在紅色釋放桿的兩側。 該器件適合戶外使用以及環境溫度變化較大的應用。
拉繩系統功能對準后，每個開關可在長達約 100m 的距離內觸發緊急停止信號。
Kiepe pull-rope emergency stop switches type HEN are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems.
The pull rope is symmetrically tensioned on both sides of the red release lever. The devices are suitable for outdoor use and applications where the ambient temperature varies considerably.
With the pull-rope system functionally aligned, the emergency stop signal can be triggered over a distance of up to about 100m for each switch.
KIEPE拉繩開關其他常用型號：
KIEPE 91.043 450.001
KIEPE 91.043 450.002
KIEPE 91.043 450.004
KIEPE 91.043 450.005
KIEPE 91.043 450.018
KIEPE 91.043 450.701
KIEPE 91.043 450.702
KIEPE ELECTRIC pull-rope switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KIEPE拉繩開關91.043.450.002的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for KIEPE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
KIEPE拉繩開關HEN系列91.043.450.002參數介紹
