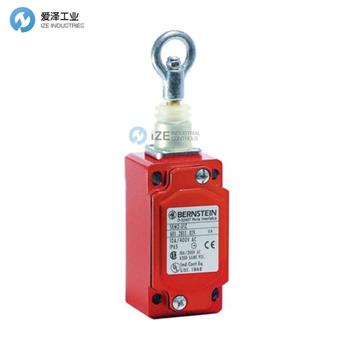

BERNSTEIN拉繩開關SEM2-U1Z 6012811029技術參數
Electrical data | |
Rated insulation voltage Ui | 400 VAC |
Conv. thermal current Ithe | 10 A |
Rated operational voltage Ue | 240 V |
Utilization category | AC-15, Ue /Ie 240 V / 3 A |
Direct opening action | acc. to IEC/EN 60947-5-1, Annex K |
Short-circuit protective device | Fuse 10 A gL/gG |
Protection class | I |
Mechanical data | |
Enclosure | Al-die cast |
Cover | Al-plate |
Actuator | Pull ring (Zn-die cast) |
Ambient air temperature | -30 °C ... +80 °C |
Contact type (not pretensioned installation) | 1 NC, 1 NO (Zb) |
Mechanical life | 1 x 106 operating cycles |
Switching frequency | ≤ 50 / min. |
Assembly | 4 x M5 |
Connection | 4 screw terminals (M3,5) |
Conductor cross-sections | Solid: 0,5 ... 1,5 mm2 |
Cable entrance | 1 x M20x1.5 |
Installation position | Operator definable |
Protection type | IP65 acc. to IEC/EN 60529 |
Weight | ≈ 0,22 kg |

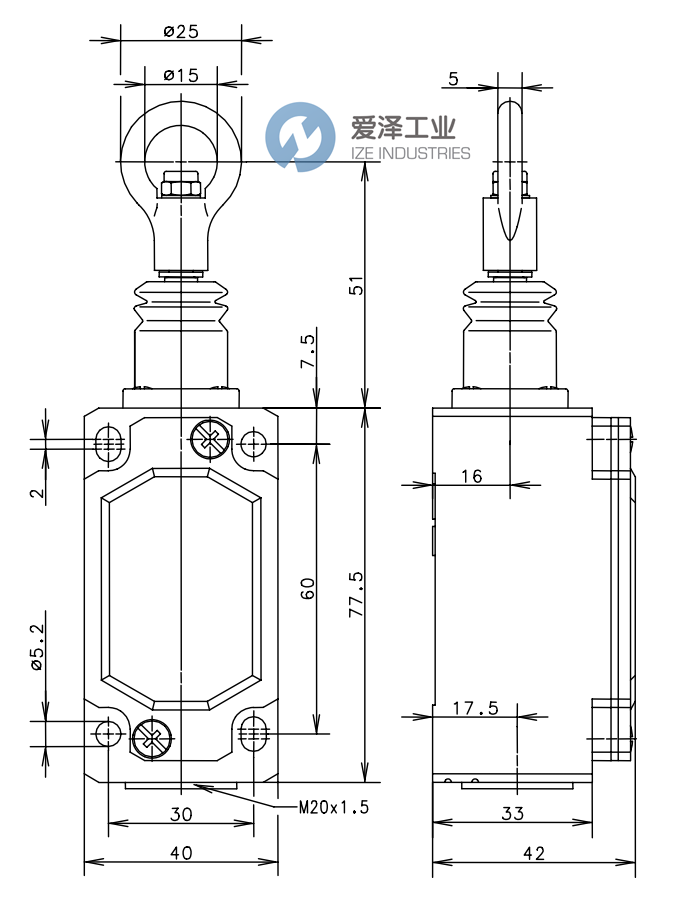

BERNSTEIN拉繩開關SEM2-U1Z 6012811029技術尺寸
BERNSTEIN拉繩開關其他常用型號：
BERNSTEIN SEM2-U1Z 6012811029
BERNSTEIN SIEM2-UV1Z 6012831022
BERNSTEIN SEK-U1Z 6011811133
BERNSTEIN SIEK-UV1Z 6011831134
BERNSTEIN SIN-UV1Z P-RAST 6013531367
BERNSTEIN SID-UV1Z P-RAST 6112431050
BERNSTEIN SD-U1 6011411856
BERNSTEIN SD-U1 6111411029
BERNSTEIN SD-U1 6111411161
BERNSTEIN SID-UV1Z 6011431857
BERNSTEIN SID-UV1Z 6111431022
BERNSTEIN SID-UV1Z 6111431069
BERNSTEIN SID-UV1 6012431877
BERNSTEIN ROPE PULL SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BERNSTEIN拉繩開關SEM2-U1Z 6012811029的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BERNSTEIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BERNSTEIN拉繩開關SEM2-U1Z 6012811029技術參數及尺寸
