DUK錯位開關LHPE-xx/x-L50系列技術參數
Technical Data | |
Conforms to standard | EN60947, EN 60529, EN 60204 |
Roller lever | position on the switch shaft steplessadjustable ball bearing, |
Max. displacement | of lever 75° out of neutral |
Contacts | NC contact: snap action, direct opening, self cleaning |
Ith (thermical current) | 10A |
Rating | Silver: 400VAC 6A / 230VAC 8A / 24VDC 10A / 80VDC 3 A |
Minimum Current | Gold: 1mA @ 6VDC |
Utilization Category | Silber: AC-15 230V 1A DC-13 110V 0,5A |
Ui Rated Insul. Voltage | 400V |
Uimp Rated Impulse | 4kV |
Terminals | Screw, each terminal clamp 1 or 2 cables, each max 2,5mm2 |
Protection | IP67 acc. EN 60529, at least IK08 acc. EN 62262 |
Cable Entries | 2 x M25, ex works closedby IP67-protecting plugs |
Enclosure Material | BMC (Fibreglass Reinforced Polyester) (LHP..) / Cast Iron (LHM..) |
Colours | standard: yellow RAL 1003, optional: red RAL 3000 |
Weight / Mass | approx. 2.9 kg (LHP...), 6.5 kg (LHM...) |
Mounting position | enclosure: free, lever: rollerabovehub |
Ambient temperature | for operation: - 40°C up to +85°C (-55°C on request) |

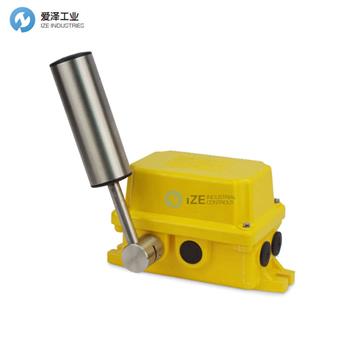

DUK錯位開關LHPE-xx/x-L50系列介紹
偏軌開關沿帶式輸送機使用，以降低因皮帶未對準而損壞或毀壞皮帶的風險。 這些不對中開關的設計考慮了重型服務。 外殼由最穩定、耐沖擊、厚壁和強耐腐蝕的玻璃纖維增強聚酯 (BMC) 或鑄鐵制成，滾輪杠桿由很好的可用組件制成，例如滾輪體、軸和球 軸承全部由不銹鋼制成，是長期可靠服務的保證。 兩種類型的外殼均具有 IP67 防護等級（防水防塵）。
? 最多 4 個觸點 NC + 4 NO
? 快動式
? 直接開啟，強制驅動
? BMC 外殼 (FRP) 可選鑄鐵
? 滾筒與皮帶之間的間隙無級可調
? IP 67
Off-track switches are used along belt conveyors to reduce the risk of damage or destruction of the belt by misalignment of the belt. The design of these misalignment switches considerates heavy duty service. Enclosures made of most stable, impact resistant, thick-walled and strongly corrosion resistant fibre-glass-reinforced polyester (BMC) or made of cast iron as well as the roller levers made of best components available, such as roller bodies, shafts and ball bearings all made of stainless steel, are the best guarantees for long years of reliable service. Both types of enclosure are IP67 protected (water- and dust proof).
? Up to 4 contacts NC + 4 NO
? Snap-action
? Direct opening, positive drive
? BMC enclosure (FRP) optional cast iron
? Stepless adjustable space between roller and belt
? IP 67

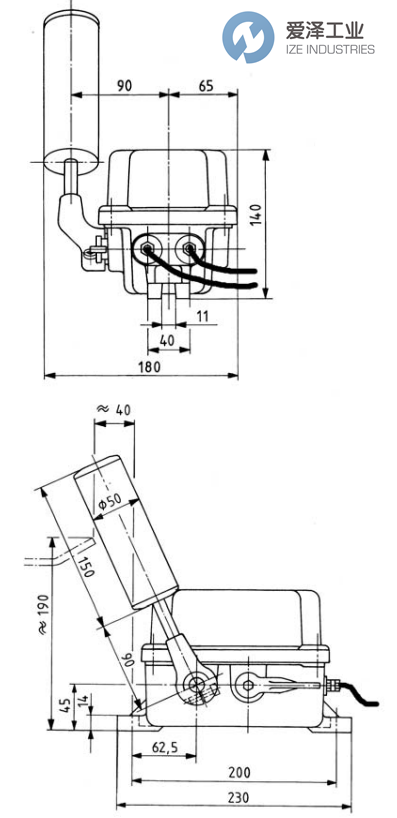

DUK錯位開關LHPE-xx/x-L50系列技術尺寸
DUK錯位開關LHPE-xx/x-L50系列其他常用型號：
DUK LHPE-10/1-L50
DUK LHPEw-10/1-L50
DUK LHPE-10/2-L50V
DUK LHPEw- 10/2-L50V
DUK LHPE-18/1-L50
DUK LHPEw-18/1-L50
DUK LHPE-18/2-L50V
DUK LHPEw-18/2-L50V
DUK LHP-10/2-L50
DUK LHPw-10/2-L50
DUK LHP-10/3-L50V
DUK LHPw-10/3-L 50V
DUK LHP-10/3-L50
DUK LHPw-10/3-L50
DUK LHP-10/4-L50V
DUK LHPw-10/4-L 50V
DUK LHP-10/4-L50
DUK LHPw-10/4-L50
