DUK錯位開關LHPw-EX..-L50系列技術參數
Technical Data | |
Conformity | ATEX/ EN 60 947 / VDE 0168 / EN 60204 |
Certfication of contads | EEx d II C T6, εx II 2 G, εx II 2 D T80°C |
approved for zone | 21 as well as 1 |
0ff-track for main contacts | 4,5cm |
ff-track for warning contadts | 2cm |
Max. displacement | 75° |
Roller lever | stainless steel, steplessadjustable , stainlesssteel ball-beared, 50mm diameter for low rotation speed and high lifetime |
Switching capacity | silver contacts: ohmic 230 VAC 5 A / 30 VAC 7 A |
Utilisation category | AC-15 2A 400V, DC-13 0,15A 250V |
Connection cable | 1 or 2 cables, each5m, 6,4mm ? or 7,4mm ?, fix welded to the contacts |
Housing material | Fibre glass reinforced polyester (LHP…), grey cast iron (LHM…) |
Housing colour | yellow or red (LHM…), black (LHP…) |
Protection | IP 67 |
Weight | 2.9 kg (LHP...), 6,5 kg (LHM....) |
Fixing | 2 slottedfeet for M10-screws (max. 11mm) |
Ambient temperature | Zone 1: -20°C up to +40°C (Gas) |

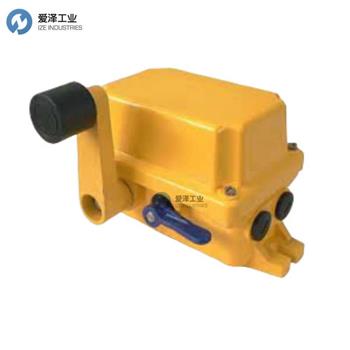

DUK錯位開關LHPw-EX..-L50系列介紹
傳送帶錯位（偏離軌道）開關在帶式輸送機的左側和右側成對使用，以減少因傳送帶錯位而造成損壞或破壞的危險。
DUK錯位開關的設計考慮了重型服務。 優質的工程結構和最抗沖擊的外殼可承受最惡劣的條件。 至少IP67的工業密封圈和超硬實心橡膠墊圈是可靠保護的保證。
? 多達 4 個經 ATEX 認證的觸點
? EEx d II C T6
? 速動觸點
? 玻璃纖維增強聚酯外殼或鑄鐵外殼
? 防護等級 67
Conveyor belt misalignment (off-track) switches are used pairwise, left and right of belt conveyors to reduce the danger of damage or destruction by misalignment of the belt.
The design of DUK-misalignment switches considerates heavy duty service. The quality engineered construction and the most impact resistant housings withstand most unhospitable conditions. Industrial sealing rings and an extra hard solid rubber gasket are guarantors for the reliable protection of at least IP67.
? Up to 4 contacts with ATEX-approval
? EEx d II C T6
? Snap action contacts
? Fibre glass reinforced polyester enclosure or cast iron enclosure
? IP 67

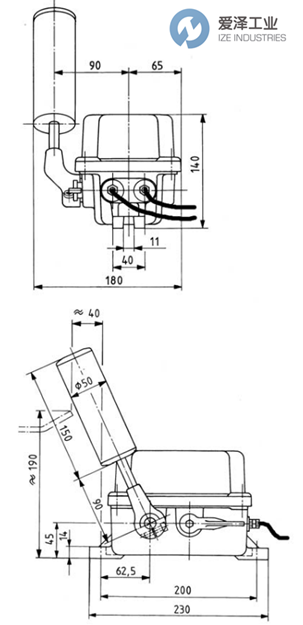

DUK錯位開關LHPw-EX..-L50系列技術尺寸

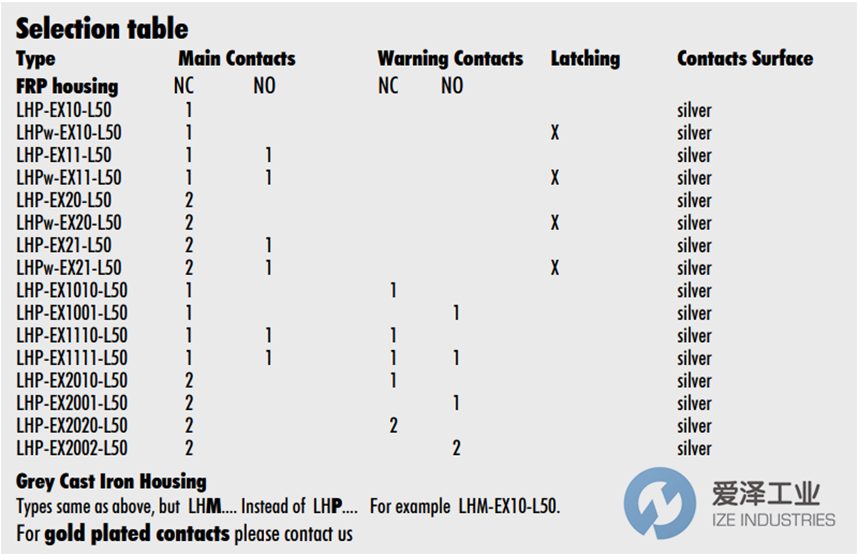

DUK錯位開關LHPw-EX..-L50系列選型
DUK錯位開關LHPw-EX..-L50系列其他常用型號：
DUK LHP-EX10-L50
DUK LHPw-EX10-L50
DUK LHP-EX11-L50
DUK LHPw-EX11-L50
DUK LHP-EX20-L50
DUK LHPw-EX20-L50
DUK LHP-EX21-L50
DUK LHPw-EX21-L 50
DUK LHP-EX1010-L50
DUK LHP-EX1001-L50
DUK LHP-EX1110-L50
DUK LHP-EX1111-L50
DUK LHP-EX2010-L50
DUK LHP-EX2001-L50
DUK LHP-EX2020-L50
DUK LHP-EX2002-L50
