DET-TRONICS火焰探測器X3301系列技術參數
Operating Voltage | 24 Vdc nominal (18 Vdc minimum, 30 Vdc maximum). Maximum ripple is 2 volts peak-to-peak | |
Power Consumption | 4 watts minimum (without heater), 17 watts at 30 Vdc with EOL resistor installed and heater on maximum | |
Relays | Contacts rated 5 amperes at 30 Vdc | |
Fire Alarm: | — Form C (NO and NC contacts) | |
— normally de-energized | ||
— latching/non-latching | ||
Fault: | — Form A (NO contacts) | |
— normally energized | ||
— latching/non-latching | ||
Auxiliary: | — Form C (NO and NC contacts) | |
— normally energized/de-energized | ||
— latching/non-latching. | ||
Current Output (Optional) | 0–20 mA (± 0.3 mA), with a maximum loop resistance of 500 ohms from 18–19.9 Vdc, 600 ohms from 20–30 Vdc | |
Temperature Range | Operating: | –40°F to +167°F (–40°C to +75°C) |
Storage: | –67°F to +185°F (–55°C to +85°C) | |
Hazardous location ratings from –55°C to +125°C | ||
Humidity Range | 0 to 95% relative humidity, can withstand 100% condensing humidity for short periods of time. | |
Spectral Sensitivity Range | 4 - 5 microns | |
Wiring | 16 AWG or 2.5 mm2 shielded cable is recommended. | |
Enclosure Material | Copper-free aluminum (painted) or stainless steel (316/CF8M Cast) | |
Conduit Entry Size | 3/4 inch NPT or M25 | |

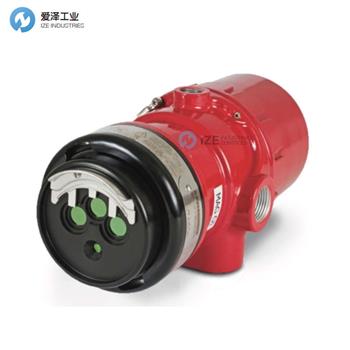

DET-TRONICS火焰探測器X3301系列介紹
X3301 提供快速火災探測性能，同時限制滋擾和誤報。多功能、堅固、可靠，開發和制造時考慮到了危險和關鍵工業過程操作員的需求。
特征
? 多種靈敏度模式
? Optical Integrity ( o i ?) 每 60 秒執行一次自動故障安全檢查
? 適用于惡劣環境和天氣的加熱光學器件
? 帶有事件時間和日期標記的數據記錄器（1500 個事件）
? FM 認可的最長檢測范圍
技術規格
? 多種通信協議，包括 0-20 mA、繼電器、Modbus、HART、FDT?/DTM 和 Eagle Quantum Premier? (EQP) 安全系統
? 用于本地報警和簡單故障識別的診斷 LED
? 大容量事件日志存儲（1,500 個事件）
? 支持 HART
The X3301 delivers fast fire detection performance while limiting nuisance and false alarms. Versatile, robust, reliable, developed and built with the needs of hazardous and critical industrial process operators in mind.
Features
? Multiple sensitivity modes
? Optical Integrity (oi?) performs automatic fail-safe checks every 60 seconds
? Heated optics for adverse environments and weather
? Data logger with event time and date stamping (1500 events)
? Longest FM Approved detection range
Technical Specifications
? Multiple communication protocols, including 0-20 mA, relay, Modbus, HART, FDT?/DTM and Eagle Quantum Premier? (EQP) safety system
? Diagnostic LED for local alarm and simple fault identification
? Large capacity event log storage (1,500 events)
? HART capable

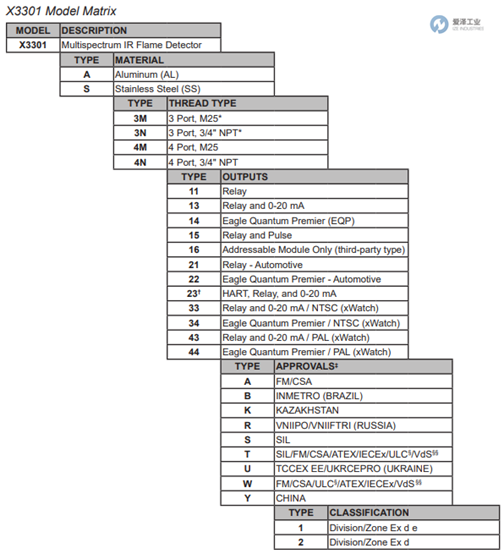

DET-TRONICS火焰探測器X3301系列選型
DET-TRONICS火焰探測器X3301系列其他常用型號：
DET-TRONICS X3301A4N11Y2
DET-TRONICS X3301A4N23Y2
DET-TRONICS X3301S4N23Y2
DET-TRONICS X3301A4M11Y2
DET-TRONICS X3301S4N11Y2
DET-TRONICS X3301S4M11Y2
DET-TRONICS X3301A4N13Y2
DET-TRONICS X3301A4N13Y2
DET-TRONICS X3301A4M13Y2
DET-TRONICS X3301S4N13Y2
DET-TRONICS X3301S4M13Y2
DET-TRONICS X3301A4N21Y2
DET-TRONICS X3301A4M21Y2
DET-TRONICS X3301A4M23Y2
DET-TRONICS X3301S4M23Y2
DET-TRONICS Flame Detector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DET-TRONICS火焰探測器X3301S4N23Y2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DET-TRONICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DET-TRONICS火焰探測器X3301系列X3301S4N23Y2技術參數及選型
