SUN-CONTROL過濾器WT205R參數
Technical specifications: | |
Scope of delivery: | Water-Trap, connection adapters (option), assembly bracket (option) |
Water pressure membrane: | 0 - 2 bar |
Operating pressure for gas: | 0 - 2 bar |
Gas flow: | 0 - 400 l air/h |
Pressure drop at 100 l air/h: | approx. 10 mbar |
Pressure drop at 400 l air/h: | approx. 40 mbar |
Diaphragm pore size: | < 0,1μm |
Operating temperature: | 0°C - +90°C |
Effective filter area: | 25 cm2 |
Housing volume: | 5 ml |
Materials used: | PTFE, PP |
Dimensions: | Diameter 70 mm, length 120 mm |
Gas connections: | on both sides 1/8“ NPT outside thread or on both sides 6 mm pipe nozzle or on both sides 6-12 mm stepped hose barb |
Assembly: | Mounting in the existing piping or via mounting bracket (option) |
Gas explosion proof ATEX: | EX II 2G Ex h IIB Gb -10°C ≤ Ta ≤ +90°C attestation EPS 19 ATEX 2 177 U |
Helium leakage test: | 2 x 10-8 mbar I/s |
Language operating instructions | German and English (included in the scope of delivery) |
Certificates/attestations: | certificate of conformity ATEX 2014/34/EU, Helium leakage test attestation |
SUN-CONTROL過濾器WT205R產品介紹

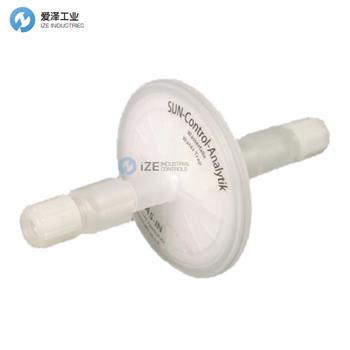

Water-Trap with extra fine particle filter
model WT 20.5
- Secure protection of the gas analyser from condensate and extra fine dust
- Low costs for reliable safety
- Certificates: ATEX 2014/34/EU, leakage tested
Functional description:
The Water-Trap is installed directly in front of the gas analyser in the piping. If the upstream gas processing (cooler, perestaltic pump, dust filter and the like) fails, the Water-Trap uses its semi-permeable SUN-C membrane? to protect the gas analyser.
The membrane separates gases from condensate and extra fine dust. If it is fully filled, the gas flow will be interrupted. An alarm is indicated via the upstream flowmeter with monitoring (refer to sample applications).
The Water-Trap is also known as a “Police filter”
Additional information from experience:
If the filter element, of the dust filter located in the gas processing is changed, particles are consistently dissolved and directed into the analyser. The downstream Water-Trap prevents this contamination as well with its diaphragm pore size of 0.1 μm.
帶超細顆粒過濾器的 Water-Trap
型號 WT 20.5
- 保護氣體分析儀免受冷凝物和超細粉塵的影響
- 可靠安全的低成本
- 證書：ATEX 2014/34/EU，泄漏測試
功能說明：
Water-Trap 直接安裝在管道中氣體分析儀的前面。 如果上游氣體處理（冷卻器、蠕動泵、濾塵器等）出現故障，Water-Trap 會使用其半透 SUN-C 膜? 來保護氣體分析儀。
該膜將氣體與冷凝物和超細灰塵分離。 如果完全充滿，氣流將中斷。 通過帶監控的上游流量計指示警報（請參閱示例應用程序）。
Water-Trap 也被稱為“警察過濾器”
來自經驗的附加信息：
如果更換位于氣體處理中的濾塵器的濾芯，顆粒將始終溶解并導入分析儀。 下游 Water-Trap 以及其 0.1 μm 的隔膜孔徑可防止這種污染。
SUN-CONTROL過濾器其他常用型號：
SUN-CONTROL WT205R
SUN-CONTROL WT 20.48 KOBE
SUN-CONTROL WT 20.5 A
