C.E.SRL火焰檢測器65UV5系列技術參數
SPECIFICATIONS (CEX MODEL) | |
MECHANICAL: | |
Housing Weight: | 6.6 lbs (2.99kg) |
Hazardous Classifications: | Exd IIC T6 ATEX |
Cooling / Purge Air Requirements: | |
Source: | Clean, dry, cool |
Volume: | 4 SCFM (113 l/min) at 3/4" threaded mounting flange, or 1 inch “Y” fitting, mounted on scanner sight pipe. |
Pressure: | Adequate to overcome furnace or windbox pressure |
Temperature Rating: | -40° F to + 150°F (-40°C to +65°C) maximum dependent on “T” classification |
Humidity: | 0% to 95% relative humidity, non-condensing |
ELECTRICAL: | |
Input Power: | 24 Vdc, + 20% / - 25% supply current 100 mA |
Electrical Connection: | Internal terminal rail |
Relay Output | FLAME RELAY, (N.O.) / (N.C.) SPDT |
Contact Rating: | Minimum: 1 mA @ 5 Vdc |
Status Indication: | Internal LED: “Flame Signal”, “Fault Indication” |
Analog Output: | 4-20 mA DC current, referenced to 24 Vdc common, maximum connected load 750 ohms |
C.E.SRL火焰檢測器65UV5系列介紹
65UV5火焰掃描儀是基于微處理器的火焰掃描儀，采用紫外線管式傳感器和機電自檢快門機制。65UV5火焰掃描儀包含一個具有固定ON/OFF閾值的內部火焰繼電器，因此無需外部火焰放大器。
65UV5火焰掃描儀由外部提供的24 Vdc電源供電，并包括一個集成的8針快速斷開連接器。顏色編碼的內部LED指示火焰狀態和警報狀況。這可以通過后蓋上的觀察口查看。
65UV5外殼具有NEMA 4X / IP66等級。該裝置適用于Class 1, Div. 2個危險環境組A、B、C和D或Ex II3 G/D Ex nA IIC T4A。
65UV5 CEX型號通過位于CEX外殼內的端子導軌直接接線。必須使用合適的密封套將電纜端接在外殼上。

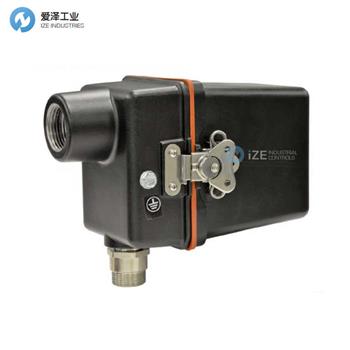

The 65UV5 flame scanner is a microprocessor-based flame scanner utilizing an ultraviolet tube-type sensor and an electro-mechanical self-checking shutter mechanism. The 65UV5 flame scanner incorporates an internal flame relay with a fixed ON/OFF threshold thereby eliminating the need for an external flame amplifier.
The 65UV5 flame scanner is powered from a 24 Vdc power source provided externally and includes an integral 8 pin quick disconnect connector. A color-coded internal LED indicates flame status and alarm condition. This can be viewed through a viewing port on the rear cover.
The 65UV5 housing has a NEMA 4X / IP66 rating. The unit is suitable for use in Class 1, Div. 2 hazardous environment groups A, B, C & D or Ex II3 G/D Ex nA IIC T4A.
65UV5 CEX models are wired directly via a terminal rail located within the CEX housing. Suitable glands must be used to terminate the cable at the housing.
C.E.SRL火焰檢測器65UV5系列其他常用型號：
C.E.SRL 65UV5-1004
C.E.SRL 65UV5-1004E
C.E.SRL 65UV5-1004QD
C.E.SRL 65UV5-1004QD-1
C.E.SRL 65UV5-1004EQD
C.E.SRL 65UV5-1004ECEX
C.E.SRL Flame Scanner NEW + ORIGINAL+ ONE YEAR WARRANTY
