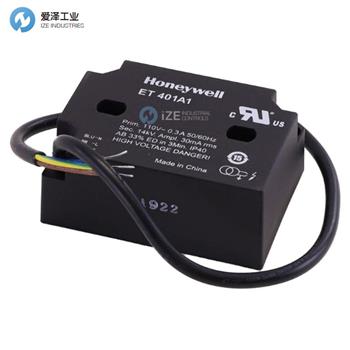

HONEYWELL點火變壓器ET401A1技術參數
Model | ET401A1 |
Power supply | 110..120 VAC(-15~+10%), 0.3A, 50/60Hz |
Ignition Voltage Output | > 14 kV amp |
High Voltage Output Connection Pin | 1 self tapping screw |
Secondary Current | 30 mA rms (±20%) |
Secondary Frequency | 14 kHz (±10%) |
Rating | 33 % E.D. in 3 minutes |
Spark Gap | 3-5 mm |
Ignition Cable Connection Type | Ignition Cable Insert and Screw Type |
Permissible Ambient | 5°F to 140°F (-15°C to 60°C) |
Weight | 1.2 lbs (0.55 kg) |
Install Screw Recommended | 2 x M5 x 20 |
Connection Cable Specifications | |
Cable Jacket Material | High Voltage Silicone |
Isolation Voltage | >17kV |
Wire Diameter | 7 mm |
Recommended Wire Length | 9.8 ft (3 m) |
Line voltage power cable connection type | Factory mounted molded 3-wire cable (L/N/G) with stripped ends, 0.5 m length |
HONEYWELL點火變壓器ET401A1介紹
ET401A1 是一款點火變壓器，適合安裝在燃氣燃燒器系統的燃燒器控制箱中。
特征
? 點燃電極間距在 0.12 到 0.20 英寸（3 到 5 毫米）之間的間斷氣體引燃器。
? ET401A1 具有 14.0 kV 輸出峰值電壓，可實現可靠的點火。
? 產生所有已知電子點火裝置中最低的電磁干擾； 如果燃燒器必須符合 EN 55014-2，則尤為重要。
? ET401A1 點火變壓器結合了低功耗和低浪涌電流。
? 外殼和安裝孔的尺寸使得ET401A1 可以安裝在燃燒器控制箱下方。
? 重 1.2 磅（0.55 公斤）。
? 符合 UL 標準 1012 和 506。
The ET401A1 is a Ignition Transformer that is suitable to be installed in burner control boxes for gas fuel burner systems.
FEATURES
? Ignites interrupted gas pilots with electrode spacings between 0.12 to 0.20 inches (3 and 5 mm).
? ET401A1 has 14.0 kV output peak voltage for a reliable light-off.
? Generates the lowest electromagnetic interferences of all known electronic ignition devices; especially important if the burner has to comply with EN 55014-2.
? ET401A1 ignition transformer combines low power consumption with a low inrush current.
? The dimensions of the housing and mounting holes are such that the ET401A1 can be mounted underneath the burner control box.
? Weighs 1.2 pounds (0.55 kilograms).
? Meets UL Standards 1012 and 506.
HONEYWELL點火變壓器其他常用型號：
HONEYWELL ET401A
HONEYWELL ET401A1
HONEYWELL ET402A
HONEYWELL ET402A1
