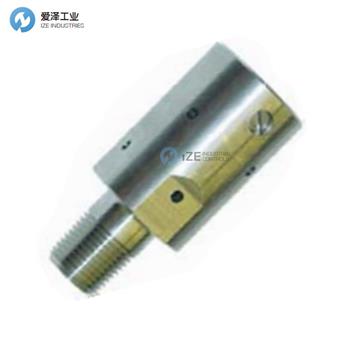

SIGMA閥15RS150系列技術參數
Product Specifications | |
Flow Control Application: | Normally Closed |
Control Function: | Two-Way - Stacked Ball |
Pressure Rating Body (Control Ports): | 10,000 PSI maximum (690 bar) |
Media Service: | Hydraulic Fluid |
Temperature Service (Select): | 158℉ 203℉ 255℉ 281℉ |
Connection Size (Body): | 15RS150 1/2-14 Male N.P.T. Inlet, exhaust to atmosphere |
Orifice: | 1/4 Diameter |
Cv Factor: | 1.45 |
Wetted Component Material (Metal): | 316 Stainless Steel |
Seal Material: | Viton |
Mounting: | Field Mount (Standard) |
Weight: | 1 Lb. |
Operating Temperature: | -20° F to +250° F (-29° C to +121° C) |
Overall Dimensions: | 3-3/8 Height x 1-1/2 Diameter (8.57 cm Height x 3.81 cm Diameter) |
SIGMA閥15RS150系列介紹
Sigma 2通易熔閥是二位、二通常閉、溫度敏感的流量控制裝置。高溫或靠近火將熔化維持閥門常閉流路的固體共晶。當閥門受到超過驅動溫度的熱量時，將自動發生供排氣流路。
易熔閥用于關閉或關閉安全系統執行器，以將潛在的燃料源與火災隔離。
可熔閥有四種常見溫度：158 ℉、203 ℉、255 ℉ 和 281 ℉。 其他溫度可通過特殊訂單查詢獲得。
Sigma 2-Way Fusible Valves are two position, two- way normally closed, Temperature Sensitive flow control device. Intense heat or close proximity to a fire will melt the solid Eutectic that maintains the valve's normally closed flow path.When the valve is subjected to heat that exceeds the actuation temperature, a Supply-to-Exhaust flow path will occur automatically.
Fusible Valves are used to shut-in or close safety system actuators to isolate potential fuel sources from fire.
Fusible Valves are available with four common temperatures:158℉, 203℉, 255℉ and 281℉. Other temperatures are available through special order inquiry.
SIGMA閥15RS150系列其他常用型號：
SIGMA 15RS150-158
SIGMA 15RS150-203
SIGMA 15RS150-255
SIGMA 15RS150-281
SIGMA 15RS146-158
SIGMA 15RS146-203
SIGMA 15RS146-255
SIGMA 15RS146-281
SIGMA 15RS141-158
SIGMA 15RS141-203
SIGMA 15RS141-255
SIGMA 15RS141-281
