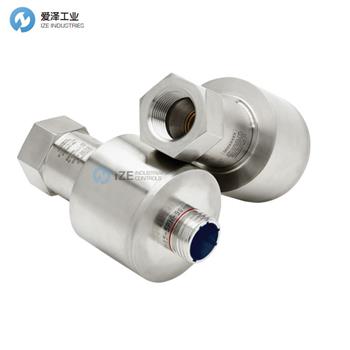

REUTER-STOKES火焰追蹤器RS-FS-9001技術參數
Operating | |
Power requirements | 24 VDC nominal, 12-30 VDC @ 100 mA |
Output | 4-20 mA (a module to convert output to other controller inputs is available) |
Response time | < 25 milliseconds |
Temperature range | -20oF to +300oF (-30oC to +150oC) (1), 455oF (235oC) with specified water or air cooling |
Process pressure | To 400 psig (2.8 MPa) |
Sensitivity | 5 mA @ 1x1010 photons/in2/sec. @ 310 nm |
Material | |
Body mount | AISI 316 stainless steel |
Housing | AISI 304 stainless steel (sealed and Argon filled) |
Mechanical interface | 3/4" NPT female |
Electrical connector | MIL-C-38999 series III size 15 (5pin) |
Sensor | Silicon Carbide (SiC) photodiode |
REUTER-STOKES火焰追蹤器介紹
The Silicon Carbide (SiC) Flame Tracker dramatically improves gas turbine performance while significantly reducing maintenance requirements. Available for a variety of gas turbines, the Flame Tracker flame sensor’s optical photodiode is designed for use with multiple fuels, low NOx combustors and steam injection. Reliable turbine operations for steam injection applications require the sensitivity provided by Flame Tracker.
Advantages
High sensitivity, fast response
Flame Tracker, with its SiC photodiode, has high sensitivity to the longer UV wavelengths that easily penetrate the fog of fuel and steam. This is advantageous over typical flame sensors that are sensitive to only the short UV wavelengths. In addition, the SiC sensor has an analog output with a very wide dynamic range and rapid response time. These features offer the ability to quickly—in less than 25 milliseconds—report flame status. This means interruption-free service and improved availability.
Reduced maintenance
The Flame Tracker flame sensor is equipped with quick disconnect connectors, allowing sensor replacement time to be reduced from hours to minutes. Its improved sensorcooling feature lowers the impact of surrounding heat and extends the life of electronics.
Customized conversion kits
Customized flame sensor conversion kits are available for all turbine configurations. These sensor enhancements are mechanically and electrically interchangeable with existing systems. The kit solution simplifies upgrading older, maintenance-intensive systems to the superior performance of the Flame Tracker.
Reliable, low voltage operation
Providing a 4–20 mA industry-standard output signal, the Flame Tracker operates reliably with any fuel—with or without— steam injection. Unlike older flame sensors that require high voltage for operation, the Flame Tracker requires low voltage, which eliminates special wiring and explosion-proof conduit requirements.
Performance benefits
? Provides reliable operation when using any fuel
? Allows full operation during the water wash cycle
? Reduces maintenance time
? Operates on low voltage
? Provides rapid response to flameout
? Produces a wide dynamic range
? Customized conversion kits
? Meets all NFPA guidelines for flame detection on gas turbines
? Delivers 10 times the sensitivity of tube-style sensors
碳化硅（SiC）火焰追蹤器可顯著改善燃?xì)廨啓C(jī)性能，同時顯著降低維護要求。 Flame Tracker火焰?zhèn)鞲衅鞯墓鈱W(xué)光電二極管可用于多種燃?xì)廨啓C(jī)，設計用于多種燃料，低NOx燃燒器和蒸汽噴射。蒸汽噴射應用中渦輪的可靠運行需要Flame Tracker提供的靈敏度。
優點
高靈敏度，快速響應
帶有SiC光電二極管的Flame Tracker對較長的UV波長具有高靈敏度，該波長很容易穿透燃料和蒸汽的霧氣。相對于僅對短紫外線波長敏感的典型火焰?zhèn)鞲衅鞫?，這是有利的。此外，SiC傳感器具有模擬輸出，該模擬輸出具有非常寬的動態范圍和快速的響應時間。這些功能提供了在不到25毫秒的時間內快速報告火焰狀態的功能。這意味著無中斷服務和更高的可用性。
減少維護
Flame Tracker火焰?zhèn)鞲衅髋鋫淞丝焖贁嚅_連接器，可將傳感器的更換時間從數小時縮短至數分鐘。其改進的傳感器冷卻功能降低了周圍熱量的影響，并延長了電子設備的使用壽命。
定制的轉換套件
定制的火焰?zhèn)鞲衅鬓D(zhuǎn)換套件可用于所有渦輪機配置。這些傳感器增強功能可以與現有系統在機械上和電氣上互換。該套件解決方案簡化了將舊的維護密集型系統升級到Flame Tracker的卓越性能的過程。
可靠的低壓運行
火焰跟蹤器提供4–20 mA工業標準輸出信號，可在任何燃料（有或沒有蒸汽噴射）的情況下可靠運行。與需要高電壓才能運行的舊式火焰?zhèn)鞲衅鞑煌現lame Tracker需要低電壓，這消除了特殊的布線和防爆導管的要求。
性能優勢
?使用任何燃料時均可提供可靠的運行
?允許在水洗過程中完全運行
?減少維護時間
?低壓運行
?快速響應熄火
?產生寬廣的動態范圍
?定制的轉換套件
?符合有關燃?xì)廨啓C(jī)火焰檢測的所有NFPA準則
?靈敏度是管狀傳感器的10倍
REUTER-STOKES火焰追蹤器其他常用型號：
REUTER-STOKES RS-FS-9004
REUTER-STOKES RS-FS-9001
