ELEKTROGAS安全閥EVRM-NC/6NC系列技術參數
Technical specifications | |
Connections | Gas threaded ISO 7-1 from Rp3/8 to Rp22 |
Voltage rating | 230 VAC 50/60 Hz |
Voltage tolerance | -1.5 |
Ambient temperature | -15℃/+60℃ |
Max. operating pressure | 600 mbar (60 kPa) |
Closing time | < 1 second |
Filter (except brass models) | 600 μm, metal mesh |
Protection class (EN 60529) | IP65 models with DIN plug DN10..DN80 |
Cable gland | PG 9 models with DIN plug DN10..DN80 |
Coil winding insulation | Class H (200°C) |
Coil thermal resistance | Class F (155°C) |
Materials in contact with gas | Aluminium alloy |

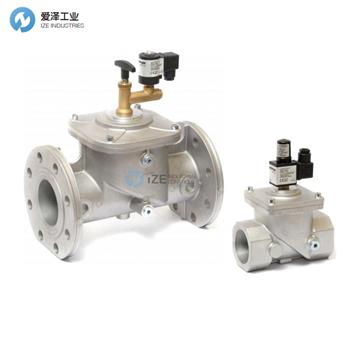

ELEKTROGAS安全閥EVRM-NC/6NC系列介紹
EVRM-NC /6NC 型閥門是一種手動復位安全閥，通常處于關閉狀態（通電時打開）。這種設備連接到一個或多個氣體泄漏檢測器、安全恒溫器或一氧化碳存在報警信號，適用于對氣體管線執行鎖定操作。
The EVRM-NC /6NC type valve is a manual reset safety valve that is normally closed (open when energized). This type of device, connected to one or more gas leakage detectors, safety thermostat or alarm signals for the presence of carbon monoxide, is suitable to perform locking operations on the gas line.
ELEKTROGAS安全閥EVRM-NC/6NC系列其他常用型號：
ELEKTROGAS EVRM6NC7A
ELEKTROGAS EVRM6NC8A
ELEKTROGAS EVRM6NC9
ELEKTROGAS EVRM6NC93
ELEKTROGAS EVRM6NC95
ELEKTROGAS EVRM6NC98
ELEKTROGAS EVRM6NC910
ELEKTROGAS EVRM6NC912
ELEKTROGAS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELEKTROGAS安全閥EVRM6NC95的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ELEKTROGAS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ELEKTROGAS安全閥EVRM-NC/6NC系列EVRM6NC95技術參數及介紹
