TESCOM調節閥44-1100系列技術參數
Specifications | |
Maximum Inlet Pressure | Stainless Steel: 10,000 psig / 690 bar |
Outlet Pressure Ranges | 0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig |
Design Proof Pressure | 150% maximum rated inlet |
Leakage | Bubble-tight |
Operating Temperature | -40°F to 165°F / -40°C to 75°C |
Flow Capacity | Cv = 0.06 |
Maximum Operating Torque | 35 in-lbs / 3.95 N?m |
TESCOM調節閥44-1100系列介紹及選型
TESCOM 44-1100系列高壓，低流量排氣調節器具有活塞感應設計，控制壓力為6000-10,000 psig / 414-690 bar，低扭矩設置和大旋鈕。 提供多種壓力范圍套件。
特點和優點
?可拆卸的閥組件模塊易于維修
?通過多種壓力設置具有出色的靈敏度
?活塞式傳感器提供額外的安全性和可靠性
?不平衡的閥桿有助于主動關閉
?進水口和出水口是標準配置
?排氣是標準的
?提供黃銅或不銹鋼
?在所有壓力范圍內，調壓器排氣孔均達到零psig / bar

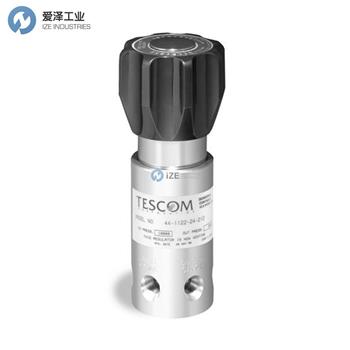

TESCOM 44-1100 Series high pressure, low flow venting regulator offers a piston sensed design,control pressures of 6000-10,000 psig / 414-690 bar,a low torque setting and large handknob. Multiple pressure range kits are available.
Features and Benefits
? Removable valve assembly module permits easy repair
? Excellent sensitivity through a wide range of pressure settings
? Piston style sensor offers extra safety and reliability
? Unbalanced stem assists positive shutoff
? Inlet and outlet gauge ports are standard
? Venting is standard
? Available in Brass or Stainless Steel
? Regulator vents to zero psig / bar in all pressure ranges

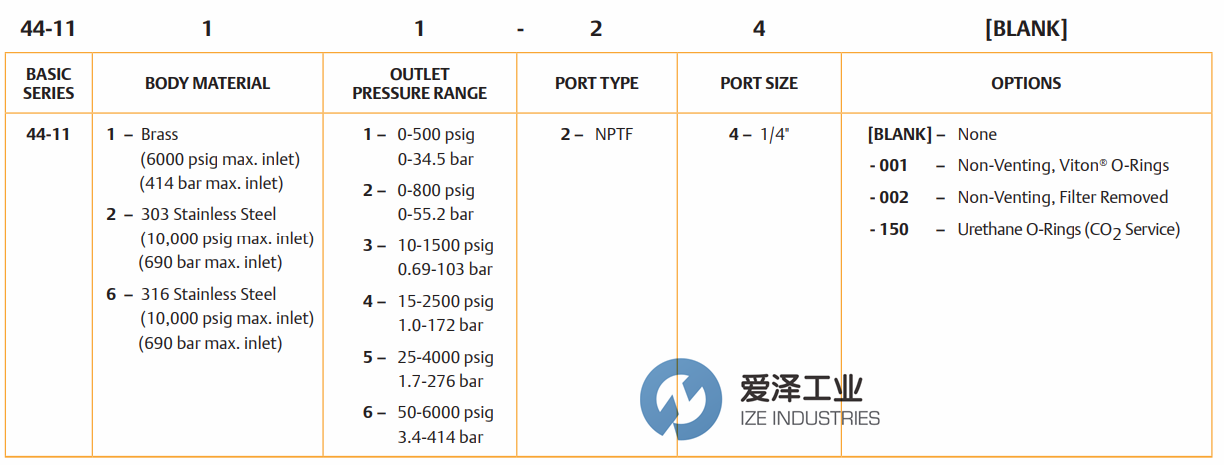

TESCOM調節閥44-1100系列其他常用型號：
TESCOM 44-1165-24
TESCOM 44-1122-24-212
TESCOM 44-1165-24-001
TESCOM 44-1111-24
TESCOM 44-1112-24
TESCOM 44-1113-24
TESCOM 44-1114-24
TESCOM 44-1115-24
TESCOM 44-1116-24
