JEAVONS調壓器J48K技術參數
PRESSURE | |
Maximum Inlet Pressure: | 350mb (5 psig) |
Maximum Outlet Pressure: | 160mb (64" wg) |
SIZE | ? ", ? ", 1 ", 1? ", 1? ", 2 " (2? " - 6 ", see separate leaflet) |
JEAVONS調壓器J48K產品介紹

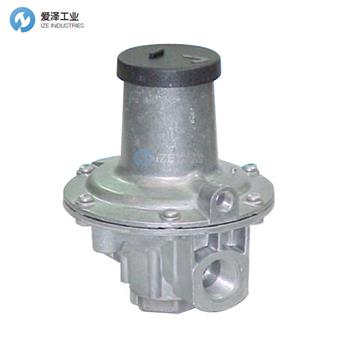

The J48 is a highly versatile proven range of Industrial Low Pressure Regulators, suitable for a wide range of pressure reduction applications. The latest version of the regulator includes a new quick release spring adjustment mechanism unit. This enhancement provides easy access for spring adjustment and routine maintenance. The J48 is available in sizes from ?" to 6", the larger sized units from 2?" being described in a separate leaflet. Also available and described on separate leaflets are the zero, H (high inlet), and HL (high inlet, low outlet) versions.
APPLICATION
The J48 is a service and appliance regulator suitable for a wide range of domestic, commercial and industrial applications. All units are designed for natural, liquid petroleum and manufactured gases.
The J48 can be installed in both horizontal and vertical pipelines, with certain sizes available with angled connections for meter services applications. The J48 has positive lock up, and has been designed for high efficiency and sensitivity with maximum flow and minimum pressure loss.
J48是工業低壓調壓器，具有多種用途，并經過驗證，適用于各種減壓應用。調節器的最新版本包括一個新的快速釋放彈簧調節機構單元。此增強功能使彈簧調整和日常維護變得容易。 J48的尺寸從?“到6”不等，較大尺寸的單位從2?“可以在單獨的說明書中進行說明。在單獨的說明書中也有可用的零，H（高入口）和HL（高入口，低插座）版本。
應用
J48是一種服務和設備調節器，適用于各種家庭，商業和工業應用。所有裝置均設計用于天然，液態石油和人造氣體。
J48既可以安裝在水平管道也可以安裝在垂直管道中，具有某些尺寸，可通過角度連接提供用于儀表服務的應用。 J48具有可靠的鎖定功能，并且設計為具有最大流量和最小壓力損失的高效率和靈敏度。
JEAVONS調壓器其他常用型號：
JEAVONS J4806-007
JEAVONS J4808-004
JEAVONS J4809-007
JEAVONS J4806-004
JEAVONS J4808-007
JEAVONS J4809-004
JEAVONS J4806-005
JEAVONS J4808-008
JEAVONS J4809-005
JEAVONS J4806-101
JEAVONS J4808-077
JEAVONS J4809-066
JEAVONS J4806-079
JEAVONS J4808-075
JEAVONS J4809-065
JEAVONS J4808-077
JEAVONS J4809-065
JEAVONS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JEAVONS調壓器J48K的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JEAVONS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
JEAVONS調壓器J48K介紹及技術參數
