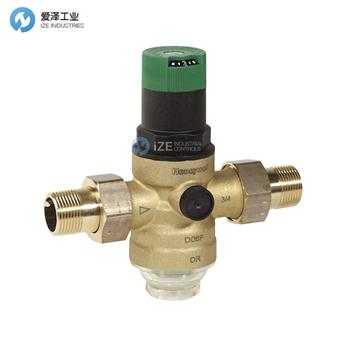

HONEYWELL減壓閥D06F系列技術參數
Media | |
Medium: | Drinking water |
Connections/Sizes | |
Connection sizes: | 1/2" - 2" |
Nominal sizes: | DN15 - DN50 |
Pressure values | |
Max. inlet pressure with clear filter bowl: | 16 bar |
Max. inlet pressure with brass filter bow: | 25 bar |
Outlet pressure: | 1.5 - 6 bar |
Preset outlet pressure: | 3 bar |
Min. pressure drop: | 1 bar |
Operating temperatures | |
Max. operating temperature medium with clear filter bowl: | 40 °C |
Max. operating temperature medium with brass filter bowl: | 70 °C max. operating pressure 10 bar |
HONEYWELL減壓閥D06F系列介紹
通過安裝減壓閥，可以避免造成壓力損壞，并減少用水量。即使入口壓力波動較大，設定壓力也保持恒定。
降低操作壓力并將其保持在恒定水平，以減少安裝中的流動噪音。
特殊特性
? 入口壓力平衡-由于入口壓力的波動，對出口壓力沒有影響
? 尺寸11/4“LGA批準的低噪音， Group 1無限制
? 閥插件是高質量的合成材料，可以完全題換
? 通過轉動調節旋鈕來設定出口壓力
? 設定的壓力直接在設定的點比例尺上表示
? 調節彈簧與水不接觸
? 積分細濾波器
? 也可無配件
By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation.
Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
?
SPECIAL FEATURES
? Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
? Up to size 11/4" approved by LGA for low noise, Group 1 without limitations
? The valve insert is of high quality synthetic material and can be fully exchanged
? The outlet pressure is set by turning the adjustment knob
? The set pressure is directly indicated on the set point scale
? The adjustment spring is not in contact with the drinking water
? Integral fine filter
? Also available without fittings

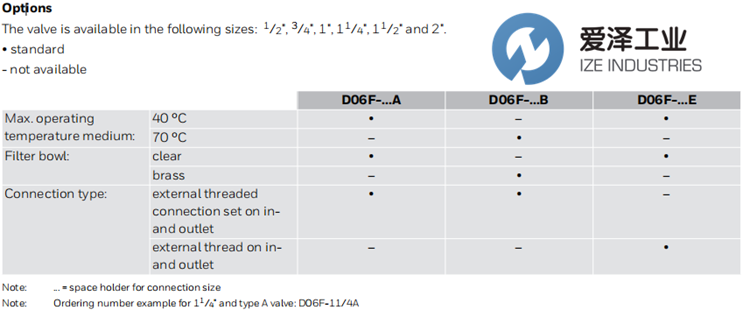

HONEYWELL減壓閥D06F系列選型
HONEYWELL減壓閥D06F系列其他常用型號：
HONEYWELL DVGW DW-6330
HONEYWELL D06F-1/2A
HONEYWELL D06F-3/4A
HONEYWELL D06F-1A
HONEYWELL D06F-11/4A
HONEYWELL D06F-11/2A
HONEYWELL D06F-2A
HONEYWELL D06F-1/2B
HONEYWELL D06F-3/4B
HONEYWELL D06F-1B
HONEYWELL D06F-11/4B
HONEYWELL D06F-11/2B
HONEYWELL D06F-2B
HONEYWELL D06F-1/2E
HONEYWELL D06F-3/4E
HONEYWELL D06F-1E
HONEYWELL D06F-11/4E
HONEYWELL D06F-11/2E
HONEYWELL D06F-2E
HONEYWELL pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL減壓閥DVGW DW-6330的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HONEYWELL減壓閥D06F系列DVGW DW-6330技術參數
