ELEKTROGAS過濾器FG系列技術參數
Technical specifications | |
Connections | Gas threaded ISO 7-1 from Rp1/2 to Rp2 or |
Max. operating pressure | 2 bar (30 psig) |
Body test pressure | 3 bar (45 psig) |
Ambient temperature | -40°C / +80°C (-40°F to +176°F) |
Flow capacity | see charts |
Pore width of filter element | ≤ 50 μm (mesh filter cartridge FGS1, FGS2) |
Filtration class | G4 according to EN 779 |
Pressure gauges | Inlet and outlet chambers |
Installation | Into horizontal and vertical pipeline |
Gas type | Natural gas, town gas, LPG (gaseous) of families 1,2,3 biologically produced methane and air On request special version for aggressive gases |
ELEKTROGAS過濾器FG系列參數介紹
描述
FG型是根據DIN 3386的氣體管道過濾器，具有非常高的粉塵和雜質吸收能力，適用于保護下游安裝的設備。
特征
過濾器由鋁合金壓鑄件制成，適用于從DN15到DN 300的進/出口連接。
適用于天然氣，城市燃?xì)?，LPG（氣態）和空氣。 根據要求，過濾器可以配備適用于腐蝕性氣體的特殊密封。
內置的過濾器濾芯是一個鋼制支撐框架，上面覆蓋有由聚烯烴纖維制成的雙層高性能無紡布，可以滿足DIN 53438防火等級F1的嚴格要求，因此具有自熄性。
考慮到相同的連接方式，F(xiàn)GS是FG過濾器的較小型號：主體更緊湊，過濾面積減小。
FGS1-FGS2型號配有網狀濾筒。
FG98-FG910-FG912型號配有2級單層濾筒。
配有用于進口腔和出口腔的壓力表（螺紋型號可選）。
所有組件的設計均能承受典型服務期間發生的任何機械，化學和熱條件。有效的浸漬和表面處理已用于提高機械強度，密封性和部件的耐腐蝕性。
過濾器經過計算機測試設備的100％測試，并得到充分保證。
功能與應用
FG型過濾器設計用于安裝在氣體管線和壓縮空氣管線中，以保護下游配件。
由聚丙烯無紡布纖維制成并帶有金屬支撐框架的濾筒，適用于保留尺寸≥30μm的灰塵和其他雜質。
當超過灰塵存儲容量或壓力差過大時，過濾器將失去保護功能。 在這種情況下，必須更換濾芯。
FGS1-FGS2型號配有網狀過濾器濾芯（50μm），易于清洗。
Description
The FG type is a filter for gas pipelines according to DIN 3386, with very high holding capacity of dust and impurities, suitable for the protections of devices installed downstream.
Features
The filters are made of aluminum alloy die-cast, with a wide range for inlet/outlet connections from DN15 up to DN 300.
Suitable for natural gas, town gas, LPG (gaseous) and air. On request the filters can be provided with special seals suitable for aggressive gases.
The incorporated filtering cartridge is a steel support frame covered with a double-layer high performance nonwoven made of polyolefine fibers, which satisfy the stringent requirements of Fire Class F1 according to DIN 53438 and are thus self-extinguishing.
Considering the same connection, the FGS are smaller models of FG filters: the body is more compact with a reduced filtering surface.
FGS1-FGS2 models are provided with a mesh filter cartridge.
FG98-FG910-FG912 models are provided with a 2-stage single-layer filtering cartridge.
Provided with pressure gauges for both inlet and outlet chamber (optional for threaded models).
All components are designed to withstand any mechanical, chemical and thermal condition occurring during typical service. Effective impregnation and surface treatments have been used to improve mechanical sturdiness, sealing and resistance to corrosion of the components.
Filters are 100% tested by computerized testing machineries and are fully warranted.
Functioning and application
The FG type filter is designed for installation in gas lines and compressed air lines, to protect downstream fittings.
The filtering cartridge made of nonwoven polypropylene fibers with a metal support frame, is suitable to retain dust and other impurities with size ≥30μm.
When the dust storage capacity is exceeded or if there is an excessive pressure difference, the filter loses its protective function. In this case the filter element must be replaced.
FGS1-FGS2 models are provided with a mesh filter cartridge (50μm), which is easy washable.

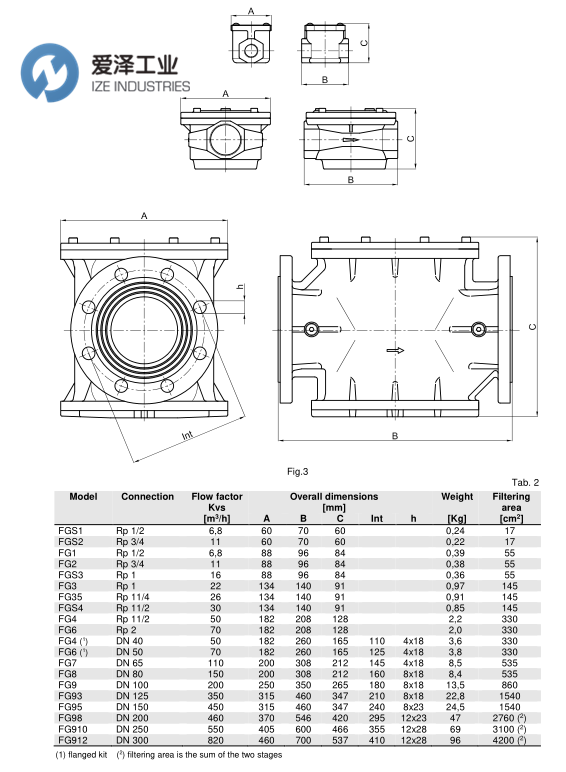

ELEKTROGAS過濾器FG系列選型及尺寸圖
ELEKTROGAS過濾器FG系列型號
ELEKTROGAS FGS1
ELEKTROGAS FGS2
ELEKTROGAS FG1
ELEKTROGAS FG2
ELEKTROGAS FGS3
ELEKTROGAS FG3
ELEKTROGAS FG35
ELEKTROGAS FGS4
ELEKTROGAS FG4
ELEKTROGAS FG6
ELEKTROGAS FG7
ELEKTROGAS FG8
ELEKTROGAS FG9
ELEKTROGAS FG93
ELEKTROGAS FG95
ELEKTROGAS FG98
ELEKTROGAS FG910
ELEKTROGAS FG912
ELEKTROGAS FG6-6A
