AUBURN火焰棒FRS系列規格描述
Auburn Sales Symbol | FRS-4-7.5 |
Probe Length (inches) | 8 |
Thread | 1/4-18 NPT |
Center Electrode Material | Kanthal |
Operating Temperature | 2350°F |
AUBURN火焰棒FRS系列介紹
工業燃燒器，鍋爐和烤箱需要在較長使用壽命內可靠的火焰探頭（或棒）。Auburn設計和制造的火焰探頭堅固耐用，可承受高達2350°F（包括2350°F）的工作溫度。選擇探針或中心線材料（例如Kanthal或Nichrome）是因為它們有優質的導電和導熱性能。陶瓷絕緣體用于使中心線與安裝殼體絕緣。在額定溫度下，單元不會破裂或擊穿。Auburn火焰探頭可在各種溫度，電壓和尺寸應用中提供準確的讀數。
工作原理-只要針尖與火焰接觸，桿就會將電流傳導到火焰感應系統（控制器）。
每個Auburn工業產品都經過嚴格的工廠檢查，包括陶瓷的導電性和電介質（電弧閃光）測試。
Manufacturers of industrial burners, boilers and ovens require flame probes (or rods) that are reliable throughout a long service life.Auburn designs and manufactur- ers flame probes rugged enough to survive operating temperatures up to and including 2350°F. Probe or centerwire materials such as Kanthal or Nichrome are chosen for their excellent conductive and thermal properties. A ceramic insulator is used to insulate the centerwire from the mounting shell Units will not crack or breakdown, at rated temperatures.Auburn flame probes give accurate readings over a wide range of tem-peratures, voltage and size applications.
Operating principle -The rod conducts current to the flame-sensing system (controller) as long as the tip is in contact with the flame.
Every Auburn Industrial product is subjected to rigorous factory inspection Tests in-clude conductivity and dielectric (arc flash) for ceramic integrity.

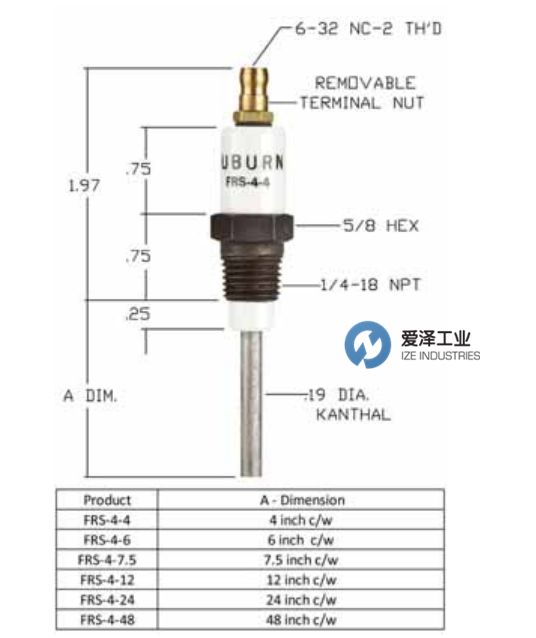

AUBURN火焰棒FRS系列尺寸圖
AUBURN火焰棒FRS系列其他常用型號：
AUBURN FRS-2-12
AUBURN FRS-2-18
AUBURN FRS-2-24
AUBURN FRS-2-6
AUBURN FRS-3
AUBURN FRS-4-12
AUBURN FRS-4-24
AUBURN FRS-4-4
AUBURN FRS-4-6
AUBURN FRS-4-7.5
AUBURN FRS-4 with 48"c/w
AUBURN FRS-5
AUBURN FRS-5 with 64" c/w
AUBURN FRS-9
AUBURN FLAME STICK NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AUBURN火焰棒FRS-4-7.5的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AUBURN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
AUBURN火焰棒FRS-4-7.5技術參數介紹
