HEGWEIN火焰檢測器ZA1系列規格描述
Characteristic | Value |
Heat release | max. 250 kW |
Flame length (depending on the gas) | max. 1200 mm |
Outside tube lengthin 10 mm increments from – to | 240 – 15000 mm |
Outside tube diameter Tube length up to 4000 mm Tube length from 4000 mm |
dia. 65 mm |
Design pressure gas flange | max. 10 bar |
Gas connection | ?“, top or bottom |
Maximum counter pressure in gas fired igniter housing | 200 mbarg overpressure |
Air connection | 1?“, rotatable 4 x 90° |
Air volume | max. 120 m3/h |
Air coefficient | 0.3 – 0.5 |
Maximum ambient temperature of the outside tube | 500 °C |
Total weight (depending on scope of delivery) | approx. 7 kg power head with mounting flange + approx. 4.5 kg/m (length of outer tube in cm, as indicated in the rating plate) |
Total dimensions (depending on scope of delivery) | Length of power head with mounting flange (see dimensional drawing in section 4.4) + outer tube length (in cm, as indicated in the rating plate) |
HEGWEIN火焰檢測器ZA1系列介紹
功能特點
燃?xì)恻c(diǎn)火器是一種其火焰旨在點燃主燃燒器的裝置。根據輸入電壓（電源電壓）產生高壓，從而在氣嘴處產生點火火花。產生的火焰通過火焰棒產生火焰信號。該火焰信號在電離火焰監控器中被放大并啟用主燃燒器。
Functional characteristics
The gas fired igniter is a device whose flame is designed to ignite a main burner. A high voltage is generated from an input voltage (mains voltage), which generates an ignition spark at the gas nozzle. The resulting flame generates a flame signal via the flame rod. This flame signal is amplified in the ionisation flame monitor and enables the main burner.

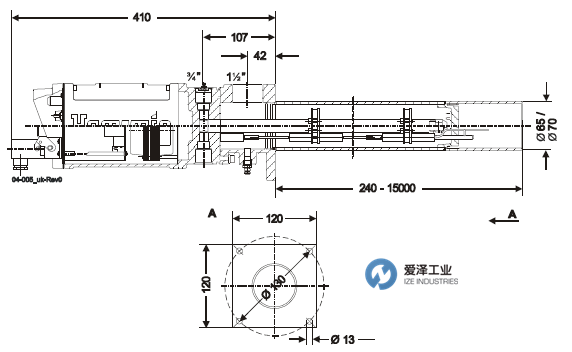

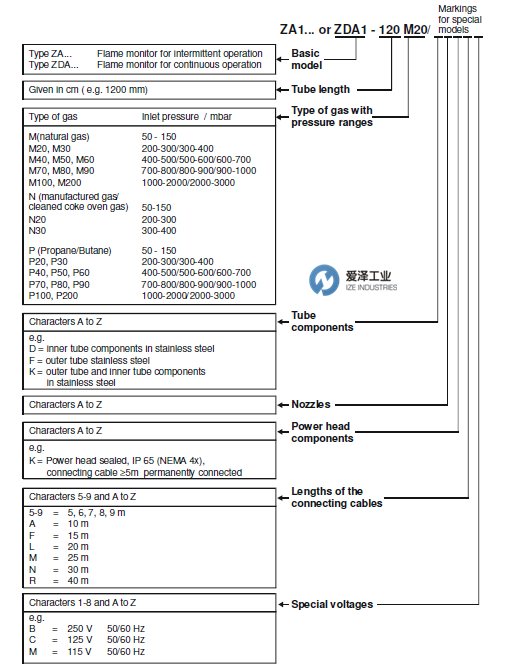

HEGWEIN火焰檢測器ZA1系列選型及尺寸圖
