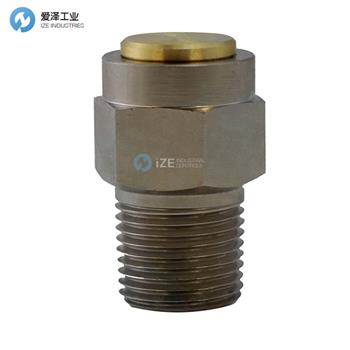

CIRCLE VALVE截止閥532B-4M-10產品參數
Specifications | |
Series | 500 |
Variation | Popoff |
Body Material | Brass |
Seal Material | Viton |
Valve Size | 1/2 in |
End Connection | Pipe Thread Male |
Operating Pressure | 0.5 to 150 psig0 to 10 bar |
Cracking Pressure | 0.5 to 150 psig |
Cracking Pressure Tolerance | ±5% |
Operating Temperature | -20 to 400 oF |
Proof Pressure | 400 psig |
Rated Burst Pressure | 500 psig |
Dim. L | 1.98 in |
Dim. L1 | 1.74 in |
Hex | 1 in |
Dia. D (max.) | 1.45 in |
Weight | .23 lbs |
Optional Body Material | 303 stainless steel 316 Stainless Steel Aluminum Brass |
Optional End Connections | M - Male NPT S - British Taper Pipe (Male) X - British Taper Pipe (Female) |
CIRCLE VALVE截止閥532B-4M-10產品介紹
特征
截止閥或直通閥
可調裂紋壓力
零泄漏
可選出廠預設
精確設定壓力
開裂壓力范圍廣
防篡改調整
100％閥座泄漏測試
大多數型號均提供PED認證和CE標記
Features
Popoff or inline valves
Adjustable crack pressure
Zero leakage
Optional factory preset
Accurate set pressure
Wide range of cracking pressure
Tamper-proof adjustment
100% seat leakage tested
PED certifications and CE marking available for most models
CIRCLE VALVE截止閥500系列其他常見型號：
CIRCLE VALVE 532B-1M
CIRCLE VALVE 532B-4M-10
CIRCLE VALVE 532B-1M-0.5
CIRCLE VALVE 532B-1M-1
CIRCLE VALVE 532B-1M-10
CIRCLE VALVE 532B-1M-100
CIRCLE VALVE 532B-1M-150
CIRCLE VALVE 532B-1M-20
CIRCLE VALVE 532B-1M-25
CIRCLE VALVE 532B-1M-30
CIRCLE VALVE 532B-1M-5
CIRCLE VALVE 532B-1M-55
CIRCLE VALVE Relief Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
