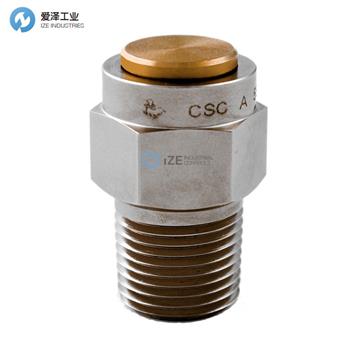

CIRCLE VALVE安全閥559B-1M-11技術規格
Specifications | |
Series | 500 |
Variation | Popoff |
Body Material | Brass |
Seal Material1 | Buna N |
Valve Size | 1/8 in |
End Connection | Pipe Thread Male |
Operating Pressure | 0.5 to 150 psig0 to 10 bar |
Cracking Pressure | 11 psig |
Cracking Pressure Tolerance | ±5% |
Operating Temperature | -65 to 275 oF |
Proof Pressure | 400 psig |
Rated Burst Pressure | 500 psig |
Dim. L | 1.14 in |
Dim. L1 | 0.98 in |
Hex | 1/2 in |
Dia. D (max.) | 0.63 in |
Weight | .04 lbs |
Optional Body Material | 303 stainless steel |
Optional End Connections | M - Male NPT |
CIRCLE VALVE安全閥500系列介紹
Leakage, Ascending Pressure
Standard seals: 0 to 95% of cracking pressure
Silicon & EPR: 0 to 80% of cracking pressure
Cracking pressures up to 2.4 psi: 4cc/min at 0 to 50% of cracking pressure Cracking pressures 2.5 psi and higher: 1cc/min at 0 to reseat pressure, 10cc/min from reseat to 90% of cracking pressures
Leakage at Reseat Pressure
All elastomeric seals: Zero
Teflon?: 1cc/min for cracking pressures 2.5 psi and higher
泄漏、升壓
標準密封：0 至 95% 的開啟壓力
硅和 EPR：0 至 80% 的開啟壓力
開啟壓力高達 2.4 psi：在開啟壓力的 0 至 50% 時為 4cc/min 開啟壓力 2.5 psi 及更高：在 0 至復位壓力時為 1cc/min，從復位至開啟壓力的 90% 時為 10cc/min
復位壓力泄漏
所有彈性密封件：零
Teflon?：開啟壓力為 2.5 psi 或更高時為 1cc/min
CIRCLE VALVE安全閥其他常用型號：
CIRCLE VALVE 559B-1M-11
CIRCLE VALVE 559B-1M-50
CIRCLE VALVE 559B-1M-150
CIRCLE VALVE 559B-1M-2
CIRCLE VALVE 559B-1M-2.5
CIRCLE VALVE 559B-1M-20
CIRCLE VALVE 559B-1M-25
CIRCLE VALVE 559B-1M-30
CIRCLE VALVE 559B-1M-5
CIRCLE VALVE 559B-1M-60
CIRCLE VALVE 559B-1M-8
