FORNEY 火焰探測放大器IDD9000規格描述
Specifications | ||
Panel Mount: | Rack Mount: | |
Dimensions: | 10 1/2” x 7 7/8” x 3 7/8” (26.6 cm x 20 cm x 9.8 cm) | 6.5 x 14 x 1.75 inches (155.6 x 355.6 x 44.5 mm) |
Weight: | 5 lbs. 3 oz. | 1 lb 7 oz. |
Temperature: | 32° to 140°F (0° to 60°C) | |
Humidity: | 5% to 95% relative humidity, non-condensing | |
Power Requirements: | 120/240 VAC, 50/60 Hz @ 12 VA | |
Output Relay Ratings (SPDT): | 3 A at 125 VAC, 250 VAC & 30 VDC | |
Flame Strength: | 4-20 mA or 0-10 VDC (sourcing) | |
Flame Failure Response Time (FFRT): | 2.0, 3.0 or 3.8 seconds | |
Flame Pickup Time: | less than 2 seconds | |
Nonvolatile RAM: | 8 complete operating profiles | |
Approvals: | Factory Mutual (FM) | |
FORNEY火焰探測放大器IDD9000產品介紹
在燃燒器啟動之前，NFPA 85要求證明“未檢測到火焰”，多燃燒器鍋爐中可靠的火焰檢測和燃燒器與燃燒器的區分更具挑戰性。這種NFPA要求以及難以區分的挑戰，例如低NOx燃燒器和反向燃燒鍋爐，要求火焰檢測系統提供更強大的信號分析和調節能力。IDD 9000采用基于數字信號處理器（DSP）的火焰信號處理方法，為NFPA兼容系統提供必要的高級調諧功能。
IDD 9000火焰放大器設計用于輕松升級現有的Forney火焰放大器，大多數安裝只需更換火焰放大器并重新連接現有電線，以改善火焰探測和識別。IDD 9000可提供面板或機架安裝; 單通道或雙通道配置。雙通道配置使用兩個完全獨立的通道同時支持兩個火焰探測器。
兼容性
放大器升級 - IDD 9000可以在任何具有完全兼容性的應用中取代大多數Forney火焰放大器，面板或機架安裝。
火焰探測器 - 適用于所有版本的Forney IDD和UV-4探測器。
模擬輸出 - 火焰強度輸出可提供0-10 VDC或4-20 mA。
Reliable flame detection and burner-to-burner discrimination in multi-burner boilers is significantly more challenging with the NFPA 85 requirement to prove “flame not detected” prior to burner start-up. This NFPA requirement along with difficult discrimination challenges, such as low NOx burners and opposed fired boilers, are demanding more powerful signal analysis and tuning capability from flame detection systems. The IDD 9000 employs a Digital Signal Processor (DSP) based flame signal processing method to offer advanced tuning capabilities necessary for a NFPA compliant system.
The IDD 9000 Flame Amplifier is designed for easy upgrade of existing Forney flame amplifiers with most installations simply requiring a flame amplifier replacement and reconnection of existing wires to improve flame detection and discrimination. The IDD 9000 is available in panel or rack mount; single or dual channel configurations. The dual channel configurations use two fully independent channels to support two flame detectors simultaneously.
Compatibility
Amplifier Upgrades – The IDD 9000 can replace most Forney flame amplifiers, panel or rack mount, in any application with complete compatibility.
Flame Detector – Works with all versions of Forney’s IDD and UV-4 detectors.
Analog Output – Flame intensity output is available in either 0-10 VDC or 4-20 mA.

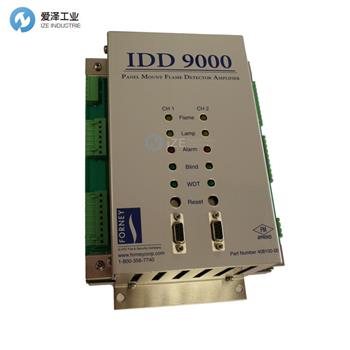

FORNEY 火焰探測放大器IDD9000
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件FORNEY 火焰探測放大器I部分型號：
FORNEY IDD 9000
FORNEY Flame Detector Amplifier NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FORNEY火焰探測放大器IDD9000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FORNEY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FORNEY火焰探測放大器IDD9000產品參數
