HEGWEIN燃氣點火器ZA系列技術參數
Heat release | Max. 120 kW |
Flame length (depending on gas) | Max. 600 mm |
Outer tube length in 10 mm increments from-to | 240-15000 mm |
Design pressure gas flange | Max. 10 bar |
Gas Port | RP1/2, left or right |
Maximum back pressure in the housing of gas ignition device | 200 mbarg overpressure |
Air Port | RP 1, 4 x 90 ° rotation |
Air volume | Max. 50 m/h |
Air temperature | Max. 80 ° C |
Relative humidity | Max. 70% |
Air quality | Free of dust, oil, grease and aerosol |
Total weight (depending on scope of delivery) | approx. 3.5 kg power head with mounting flange |

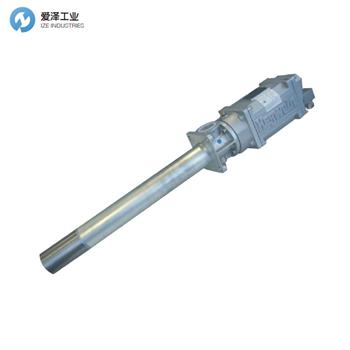

HEGWEIN燃氣點火器ZA系列介紹
燃氣點火器是一種裝置，其火焰被設計用來點燃和支撐一個主燃燒器。高電壓由輸入電壓（電源電壓）產生，從而在氣體噴嘴處產生點火火花。由此產生的火焰通過火焰棒產生火焰信號。該火焰信號在電離火焰監測器中放大，使主燃燒器啟用。
GAS FIRED IGNITER is a device designed to ignite and support the flame of the main burner. A high volume is generated from an input volume (mains volume), which generates an ignition spark at the gas noise. The result flame generates a flame signal via the flame rod. This flame signal is amplified in the ionision flame monitor and enables the main burner.

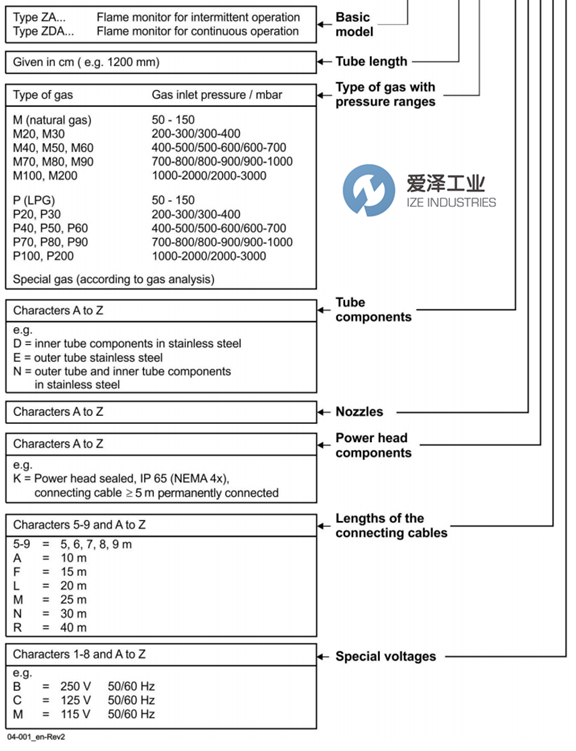

HEGWEIN燃氣點火器ZA系列選型
HEGWEIN燃氣點火器ZA系列其他常用型號：
HEGWEIN ZA0-80N/HEG00683
HEGWEIN ZA0-200 M/00K50
HEGWEIN GAS FIRED IGNITER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HEGWEIN燃氣點火器ZA0-80N/HEG00683的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HEGWEIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HEGWEIN燃氣點火器ZA系列ZA0-80N/HEG00683技術參數及選型
