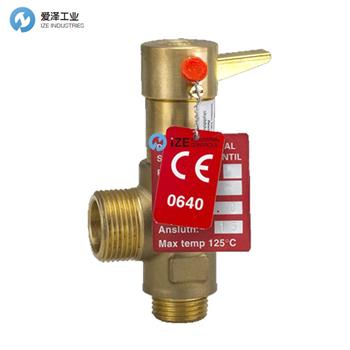

DURGO安全閥SV-77-G20/CU22-1000產品參數
Specification | |
Model | SV77 (GT-77) |
Article Number | SV-77-G20/CU22-1000 |
RSK No | 5001953 |
GTIN-13 | 7392948610025 |
Connection | G20 / CU22 |
Connection type | Male thread (ISO-G) / Compression coupling |
Set Pressure | 10.0 bar(g) |
Temperature range | -30°C to +125°C |
Type | Soft sealing |
Material | Brass / FKM seal |
Function | Pressure relief |
Approval / standard | Approved PED 2014/68/EU Class 4 |
Operation and Care Manual | OCM GT-77_EN 2016 r1 |
Declaration of Conformity | DoC GT-77_EN 2016 r1 |
Product brochure | Brochure SV Eng |
Height | 107 mm |
Net weight | 0.4 kg |
Drawing (External dimensions) | SV77_GT77 DN20_22 Dimension drawing |
Customs Stat No | 81814090 |
DURGO安全閥SV-77系列產品介紹
SV77（GT-77）型Durgo安全閥或泄壓閥可用于帶有水和油的加壓系統中。閥殼，螺紋接頭和圓錐體采用耐脫鋅黃銅制成，密封材料為氟化橡膠（FPM / FKM）或EPDM。杜高（Durgo）安全閥按照壓力設備指令（PED 2014/68 / EU）分類為4類，并帶有CE標簽。該閥標配壓縮連接出口，但也可提供出口DN20外螺紋（ISO-G），將產品編號從CU22改為G20。
Durgo Safety Valve, or Pressure Relief Valve, type SV77 (GT-77) can be used in pressurised systems with e.g. water and oils. The valve housing, nipple and cone are in dezincification resistant brass with seal material of fluorinated rubber (FPM/FKM) or EPDM. Durgo Safety Valves are Class 4 categorized and CE labelled in accordance with the Pressure Equipment Directive (PED 2014/68/EU). The valve is delivered with compression coupling outlet as standard but is also available with outlet DN20 male thread (ISO-G), change CU22 to G20 in article number.
DURGO安全閥SV-77系列其他常見型號：
DURGO SV-77-G20/CU22-0100
DURGO SV-77-G20/CU22-0150
DURGO SV-77-G20/CU22-0200
DURGO SV-77-G20/CU22-0300
DURGO SV-77-G20/CU22-0400
DURGO SV-77-G20/CU22-1000
DURGO SV-77-G20/CU22-0600
DURGO SV-77-G20/CU22-0700
DURGO SV-77-G20/CU22-0750
DURGO SV-77-G20/CU22-0800
DURGO SV-77-G20/CU22-0850
DURGO SV-77-G20/CU22-0900
DURGO SV-77-G20/CU22-1000
