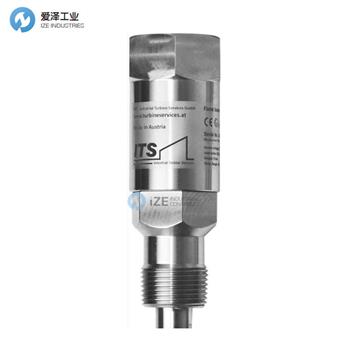

ITS火焰檢測器ITS967X7179M372技術參數
Sensor | UV Flame Scanner |
Housing | 1.4571 stainless steel |
Window | Fused Silica |
Mounting | 3/4" internal NPT |
Working Temperature | -40°C (-40°F) to 177°C (350°F) |
Pressure sealing | Against 21bar (300 psi) at 316°C (600°F) continuously |
Cable characteristics | Material: PTFE, cover color: orange Lead colors: GRN (GND), BLK (+), YEL (-) |
Lead length | 4.9m (16 Ft ± 1 Ft) |
Average Spectral Sensitivity | 190-290nm, 250cpm = 10-13W/cm2 λ:200nm |
Discharge Starting Voltage (1) | < 260VDC |
Background | < 5 min-1 |
Response Time | <200ms |
Recommended Operating Volt Range | 260-350VDC amplifier, recommended 325VDC ± 25VDC |
Pulse Output | Pulse 275 sec -1 + 25 sec1, continuous flame > 15Hz -1 |
Sensor Vibration | Continuous vibration of up to 0.7 in/sec @ 200 Hz and up to .35 in/sec @ 500 Hz or equivalent of 2.5 g acceleration |
ITS火焰檢測器ITS系列產品介紹
ITS 火焰掃描儀專為檢測烴類火焰發出的紫外線而設計。測量結果轉換為與紫外線強度相關的脈沖輸出。根據可編程閾值設置，控制系統能夠確定是否有火焰。
? 靈敏度高
? 光譜區域大
? 使用壽命更長
? 維護成本低
? 無需進行安裝修改
? 無需更改控件
ITS flame scanner has been designed to detect the ultraviolet radiation emitted by a hydrocarbon flame. The result of this measurement is converted to pulse outputs which correlates to the intensity of the ultraviolet radiation. Based on a programmable threshold setting, the control system is able to determine whether there is flame or not.
? Higher sensitivity
? Larger spectral region
? Longer life time
? Low maintenance
? No mounting modifications required
? No changes in the controls required
? Short delivery lead time
ITS火焰檢測器其他常用型號：
ITS ITS 967X7179M372
ITS ITS 967X7179M379
ITS ITS 184X0254M029
ITS ITS 184X0254M123
ITS FLAME SCANNER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ITS火焰檢測器ITS967X7179M372的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ITS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
