WHITE RODGERS閥36J系列技術參數
SPECIFICATIONS | |
Operating Voltage. | 24 VAC 50/60 Hz |
Electrical Rating - Single Stage | .3 amps |
Electrical Rating - Two Stage | .43 amps |
Ambient Operating Range | -40 to 175°F (-40 to 79°C) |
Maximum Pressure Rating | 1/2" PSI (14.0" WC) |
CSA/CUS Certificate Number | 1175379 |
CE (36J) |

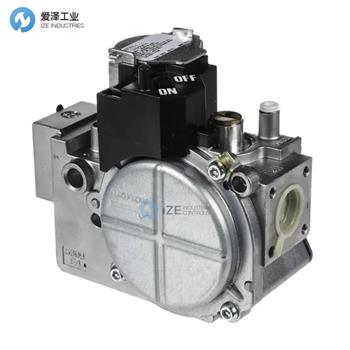

WHITE RODGERS閥36J系列介紹
Electronic ignition gas valve. The versatile 36G/36J series combination gas valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI/Intermittent/Proven Pilot). This series is our most compact footprint combination gas valve.
FEATURES
? Designed for hot surface, direct spark and intermittent pilot ignition systems and features a compact footprint and versatile range
? Fast open, slow open, single and two stage models
? Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
? Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
? Mounts in any position including upside down
電子點火燃?xì)忾y。 多功能 36G/36J 系列組合氣閥涵蓋了廣泛的應用。 設計用于普通點火系統（HSI/DSI/間歇式/經過驗證的先導）。 該系列是我們最緊湊的占地面積組合燃?xì)忾y。
特征
? 專為熱表面、直接火花和間歇先導點火系統而設計，具有緊湊的占地面積和多功能范圍
? 快開、慢開、單級和兩級型號
? 電動開關和方便的快速連接線圈端子和內置測壓接頭
? 防篡改螺釘和受控墊圈壓縮以承受高入口壓力
? 安裝在任何位置，包括倒置
WHITE RODGERS閥36J系列其他常見型號：
WHITE RODGERS 36J41K-200
WHITE-RODGERS 36J22-214
WHITE-RODGERS 36J22Y-212
WHITE-RODGERS 36J24-214
WHITE-RODGERS 36J27-554
WHITE-RODGERS 36J54-214
WHITE-RODGERS 36J55-214
WHITE-RODGERS 36J24-614
WHITE RODGERS Control NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WHITE RODGERS閥36J22-214的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WHITE RODGERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
WHITE RODGERS閥36J系列36J22-214產品參數介紹
