MEDENUS減壓閥RS255/050/PN16技術參數
Technical data | |
Type | RS 254 / RS 255 |
Model | Integral pressure-tight (IS) |
Max. allowable pressure PS | 16 bar |
Nominal width | RS 254: DN 25, DN 50, DN 80, DN 100, DN 150, DN 200 |
Connection type | DIN EN 1092 flanges PN 16 / ASME - B16.5 flanges Class 150 RF |
Material | |
Housing / actuator housing/ Control device housing | Al cast alloy DIN EN 1706-AC-42100 ST6 |
Corrosivity category | DIN EN ISO 12944-2 |
C1 to C5-I | without additional coatings |
C5-M | an epoxy resin coating is recommended (see page13) |
Temperature range, Class 2 | -20°C to +60°C |
Closing pressure zone group | SZ 2.5 |
Function, strength, and tightness | DIN EN 334 and DIN EN 14382 |
CE mark to PED/ PIN number | CE-0085-AQ0882 / CE-0085-AQ0883 |
MEDENUS減壓閥介紹

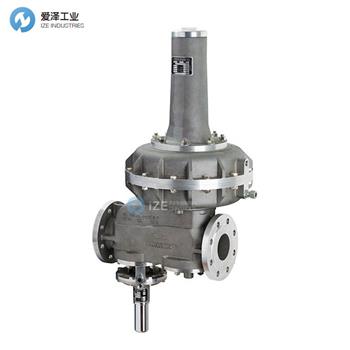

MEDENUS GAS PRESSURE REGULATOR RS 255
The MEDENUS gas pressure regulator type RS 255 ensures a constant outlet pressure - regardless of the primary (inlet) pressure - when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The inbuilt safety shut off valve ensures a safe shut off if the pressure is too high or too low.
The gas pressure regulator RS 255 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The RS 255 is available with flange connections from DN 50 to DN100 and working pressure up to 16,0 bar. All gas pressure regulators are certified by DVGW and CE.
All regulators of the RS-series are with options like safety membrane, vent valve, remote release of SSV, noise reduction and many more available.
MEDENUS 氣壓調節器 RS 255
RS 255 型 MEDENUS 氣壓調節器可在氣體用量變化時確保恒定的出口壓力（無論主（入口）壓力如何），并在流量突然變化時確?？焖賶毫φ{節。內置安全關閉閥確保壓力過高或過低時安全關閉。
氣壓調節器 RS 255 適用于符合 DVGW 操作規范 G260/262 的氣體以及所有其他中性和非腐蝕性氣體（其他應要求提供）。RS 255 可提供 DN 50 至 DN100 的法蘭連接，并可在 壓力高達 16.0 bar。 所有氣壓調節器均已通過 DVGW 和 CE 認證。
RS 系列的所有調節器均配有安全膜、排氣閥、SSV 遠程釋放、降噪等選項。
MEDENUS減壓閥其他常用型號：
MEDENUS RS255/050/PN16
MEDENUS RS 254
MEDENUS pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MEDENUS減壓閥RS255/050/PN16的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MEDENUS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
