HEGWEIN燃?xì)恻c(diǎn)火器ZDA0系列技術參數
Heat release | max. 120 kW |
Flame length (depending on the gas) | max. 600 mm |
Outer tube length in 10 mm increments from – to | 240 – 15000 mm |
Outer tube diameter | |
Outer tube length up to 4000 mm | dia. 48 mm |
Outer tube length from 4000 mm | dia. 50 mm |
For the stainless steel version always dia. 50 mm | |
Design pressure gas flange | max. 10 bar |
Gas port | Rp ?, left or right |
Maximum counter pressure in gas fired igniter housing | 200 mbarg overpressure |
Air port | Rp 1, rotatable 4 x 90° |
Air volume | max. 50 m3/h |
Air temperature | max. 80 °C |
Relative humidity | max. 70 % |
Air quality | free of dust, oil, grease and aerosols |
HEGWEIN燃?xì)恻c(diǎn)火器ZDA0系列選型
HEGWEIN燃?xì)恻c(diǎn)火器ZDA0系列其他常用型號:
HEGWEIN ZDA0-60M
HEGWEIN ZDA0-65 M50/00KL0
HEGWEIN ZDA0-32 M50/00KL0
HEGWEIN ZDA0-60 M/00C
HEGWEIN ZDA0-60 M/ 00K50
HEGWEIN ZDA0-150N/0
HEGWEIN ZDA0-70M/00K50
HEGWEIN ZDA0-75 M/N0000

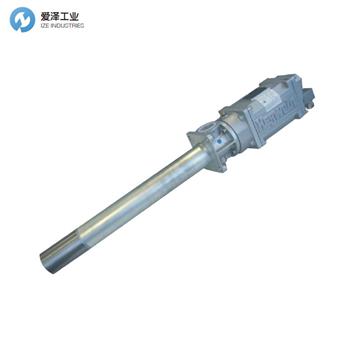

HEGWEIN Gas fired igniter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HEGWEIN燃?xì)恻c(diǎn)火器ZDA0-60M的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for HEGWEIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HEGWEIN燃?xì)恻c(diǎn)火器ZDA0系列ZDA0-60M技術參數及選型
