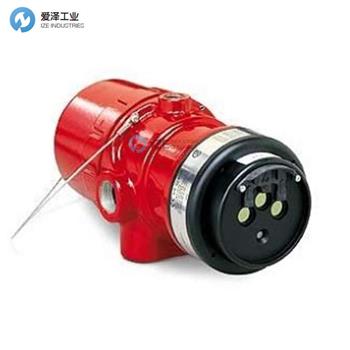

DET-TRONICS火焰探測器X5200A4N14W2 008520-001技術參數
Code | X5200A4N14W2 |
DESCRIPTION | X5200 UVIR Flame Detector |
MATERIAL | A Aluminum (AL) |
THREAD TYPE | 4N 4 Port, 3/4" NPT |
OUTPUTS | 14 Eagle Quantum Premier |
APPROVALS | W FM/CSA/ATEX/IECEx |
CLASSIFICATION | 2 Division/Zone Ex d |
DET-TRONICS火焰探測器X5200系列介紹
X5200 UVIR 火焰探測器滿足全球最嚴格的要求,具有先進的超高速檢測能力和對外部來源的免疫力,并結合了卓越的機械設計。 UV 傳感器上的 Arc Rejection 與 IR 傳感器上的 TDSA/Quick Fire 相結合,使該檢測器成為可用的最高誤報免疫 UVIR。 安裝布置允許 UV 和 IR 傳感器以 90 度視野監控相同的危險位置。 當兩個傳感器同時檢測到火焰存在時,就會產生警報信號。
標準輸出配置包括帶 RS-485 Modbus 的火警、故障和輔助繼電器。 還提供可選的 0-20 mA、Eagle Quantum Premier 或 HART 輸出。 輔助繼電器可以靈活地使用紫外線、紅外線或兩者來定制檢測。 具有脈沖輸出的型號可用于輕松改裝到現有的基于 Det-Tronics 控制器的系統中。
X5200 外殼采用鋁制或不銹鋼材質,具有 NEMA/Type 4X 和 IP66/IP67 防護等級。 典型應用包括造紙機、彈藥、石化應用和氣溶膠灌裝。
? 提供 Eagle Quantum Premier 和 Eagle Quantum 兼容型號
? 提供具有 SIL 2 認證的型號
? 在存在調制黑體輻射(即加熱器、烤箱、渦輪機)的情況下對火災作出響應,而不會誤報
? 超高速能力
? 可選 HART 輸出、AMS 感知和 FDT/DTM 能力
? 加熱光學元件以提高對濕氣和冰的抵抗力
? 自動、手動或磁性 oi(光學完整性)
? FM、CSA、ATEX 和 IECEx
? 通過 BRE、LPCB 認證的 EN 54 第 10 部分
? 符合建筑產品指令
? 可配置的輔助繼電器允許獨立的報警信號
? 接線盒允許根據 NFPA 72 指定 X 類通路
? 符合 EMI、RFI、EMC 指令
? 內置數據記錄/事件監控
? 提供集成防爆攝像頭選項 (xWatch) 的型號
? 檢測器面板上的三色 LED 指示檢測器狀態
X5200 UVIR Flame Detector meets the most stringent requirements worldwide with advanced ultra high speed detection capabilities and immunity to extraneous sources, combined with a superior mechanical design. The combination of Arc Rejection on the UV sensor and TDSA/Quick Fire on the IR sensor make this detector the highest false alarm immune UVIR available. The mounting arrangement allows the UV and IR sensors to monitor the same hazardous location with a 90-degree field of view. When both sensors simultaneously detect the presence of a flame, an alarm signal is generated.
The standard output configuration includes fire, fault, and auxiliary relays with RS-485 Modbus. Optional 0-20 mA, Eagle Quantum Premier, or HART outputs are also available. Auxiliary relay offers the flexibility to customize detection, using UV, IR, or both. A model with pulse output is available for easy retrofitting into existing Det-Tronics controller based systems.
The X5200 housing is available in aluminum or stainless steel, with NEMA/Type 4X and IP66/IP67 rating. Typical applications include paper machines, munitions, petrochemical applications, and aerosol filling.
? Eagle Quantum Premier and Eagle Quantum compatible models available
? Models available with SIL 2 certification
? Responds to a fire in the presence of modulated blackbody radiation (i.e., heaters, ovens, turbines) without false alarm
? Ultra high speed capability
? Optional HART output, AMS aware, and FDT/DTM capable
? Heated optics for increased resistance to moisture and ice
? Automatic, manual, or magnetic oi (optical integrity)
? FM, CSA, ATEX, and IECEx
? EN 54 part 10 certified by BRE, LPCB
? Meets Construction Product Directive
? Configurable auxiliary relay allows independent alarm signaling
? Terminal block allows for Class X Pathway Designation per NFPA 72
? EMI, RFI, EMC Directive Compliant
? Built-in data logging / event monitoring
? Models available with integral Explosion-proof camera option (xWatch)
? Tricolor LED on detector faceplate indicates detector status condition

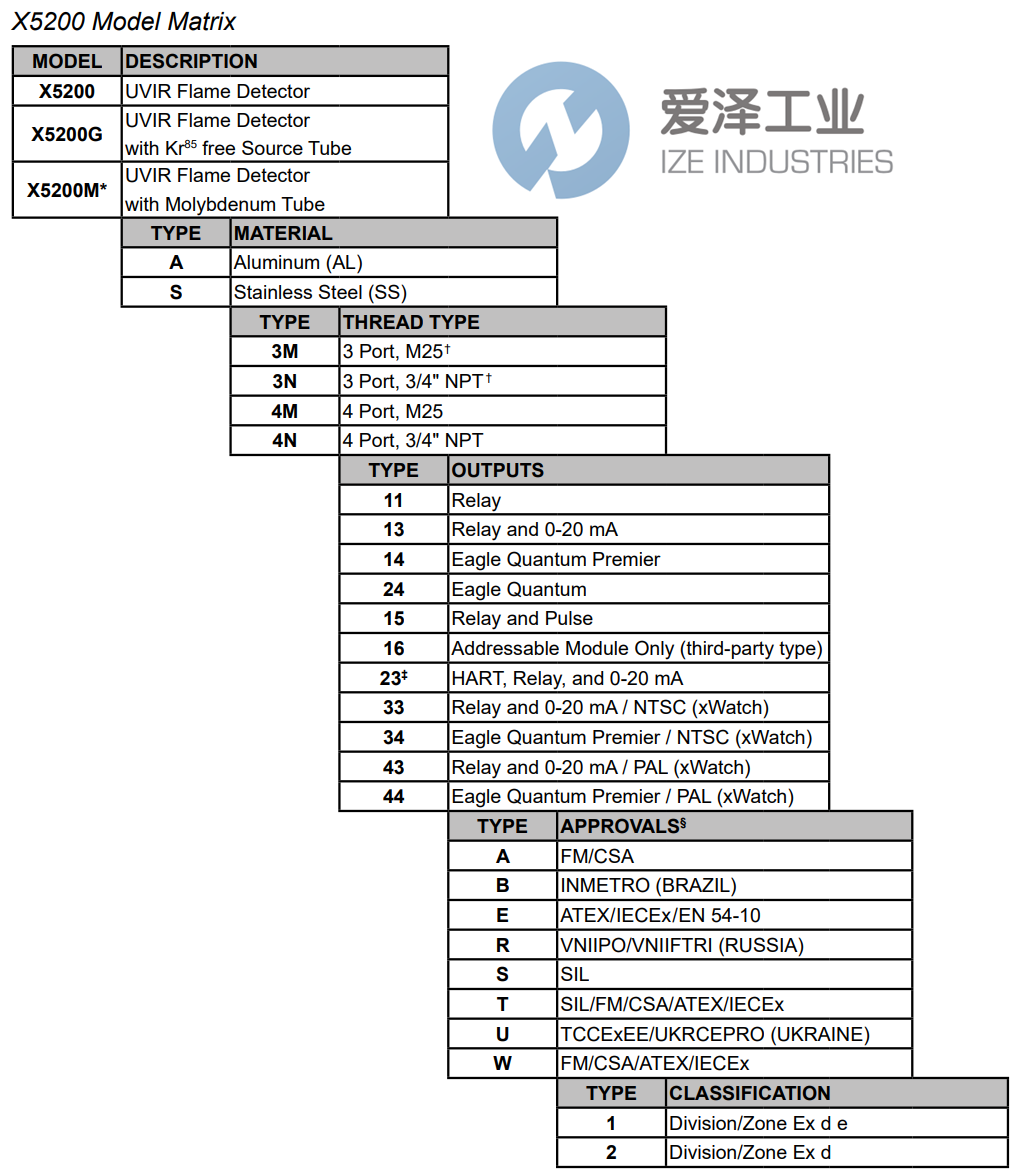

DET-TRONICS火焰探測器X5200系列選型
DET-TRONICS火焰探測器X5200系列其他常用型號:
DET-TRONICS X5200A4N14W2 008520-001
DET-TRONICS X5200A4M14W2 008521-001
DET-TRONICS X5200S4N14W2 008522-001
DET-TRONICS X5200S4M14W2 008523-001
DET-TRONICS X5200A4N14W1 008516-001
DET-TRONICS X5200A4M14W1 008517-001
DET-TRONICS X5200S4N14W1 008518-001
DET-TRONICS X5200S4M14W1 008519-001
DET-TRONICS FLAME DETECTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
