HOKUYO光學數據傳輸設備BWF-11A/11B技術參數
Model No. | BWF-11A/11B |
Transmission distance | 100m |
Directional angle | ±2° |
Transmission method | Full duplex two-way transmission |
Transmission speed | DC to 19.2kbps |
Input/Output interface | RS-232C/RS-422 |
Modulation method | FSK modulation |
Modulation frequency | Type A (transmission 5.5MHz, reception 6.0MHz), Type B (transmission 6.0MHz, reception 5.5MHz) |
Power source | 12 to 24VDC (10 to 30VDC) |
Current consumption | 150mA or less (at 12VDC), 80mA or less (at 24VDC) |
Warning output | Photo-coupler (35V, 50mA), |
Light-reception level Output | 0 to 5V (in proportion to light reception amount) |
Indication lamps | Power source, carrier detect, data input, data output, light-reception level margin (Red LED) |
Connection | Connector (25pins D-sub connector), but M3 screw terminal at power source |
Ambient illuminance | 20,000lux or less (Both sun light and incandescent lamp) |
Ambient temperature/humidity | -10 to +50℃, 85%RH or less (not icing, not condensing) |
Protective structure | IP60 (IEC Standard), available up to IP64 by user's option |
Case material | ABS resin |
Weight | Approx. 500g |

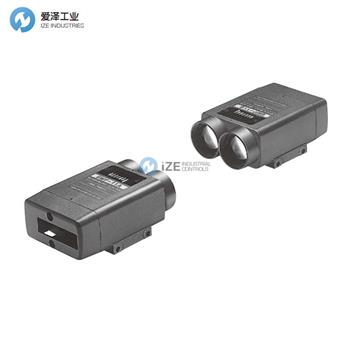

HOKUYO光學數據傳輸設備BWF系列介紹
BWF 系列光學數據傳輸設備使數據能夠在長距離對齊的一對單元之間快速可靠地傳輸。典型用途是高架起重機和堆垛機、自動存儲和檢索系統 (AS/RS) 以及用于從車輛到控制單元的非接觸式雙向通信的轉運車。使用調制光作為傳輸方法意味著這些收發器不會像拖曳電纜和滑環那樣產生物理磨損，也不像無線電系統那樣需要重新校準。
? 實際傳輸距離為額定值的2倍以上，實現了高可靠性的數據傳輸。
? 接口種類豐富，RS-232C、RS-422、電流環、RS-422/RS-485 multi-drop等。
? 提供電平降低警告輸出，以防止光軸錯位或鏡頭表面臟污等故障。
? 可通過光學檢測儀或檢測終端方便地檢測光軸調整情況。
The BWF Series optical data transmission devices enable data to be transmitted quickly and reliably between an aligned pair of units over long distances. Typical uses are on overhead and stacker cranes, automated storage and retrieval systems (AS/RS) and transfer cars for non-contact bi-directional communication from the vehicle to the control unit. The use of modulated light as the transfer method means that these transceivers do not incur physical wear like trailing cables and slip rings nor do they require recalibration like radio systems.
? Actual transmission distance is 2 times or more than rated value and data transmission with high reliability is realized.
? Many kinds of interface are lined up, RS-232C, RS-422, current-loop and RS-422/RS-485 multi-drop, etc.
? Level lowering warning output are provided due to prevent some troubles such as dislocation of optical axis or dirty lens surface.
? It can be easy to check optical axis adjustment with optical checker or checking terminal.

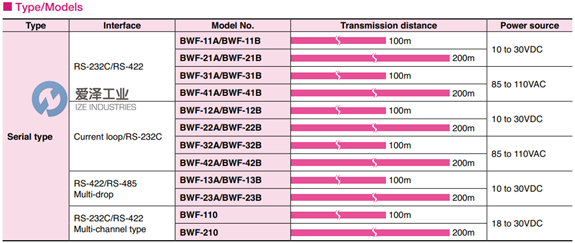

HOKUYO光學數據傳輸設備BWF系列選型
