ACKSYS網關AirXroad/4P技術參數
Ethernet interface | 1-port Fast Ethernet 10/100 Base TX auto-sensing, auto MDI/MDIX cross-over, 4 pts M12 connector |
WiFi interface | 1 radio IEEE 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz |
WiFi radio data rate | 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps |
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps | |
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps) | |
Operating frequencies | ISM : 2.4-2.483 GHz (up to 14 channels) |
UNII : 5.15-5.25 GHz (up to 4 channels) | |
UNII-2 : 5.25-5.35 GHz (up to 4 channels) | |
UNII-2 ext : 5.470-5.725 GHz (up to 11 channels) | |
UNII-3 : 5.725-5.825 GHz (up to 4 channels) | |
Supports DFS and TPC | |
RF Output power | 2,4 GHz : 23,5 dBm (aggregate) / 5 GHz : 21 dBm (aggregate) |
FR Sensitivity | Receiver : -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n |
Antennas connections | 2 RP-SMA male connectors |
WiFi modes | Access point, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS |
Administration | http, https, SNMP agent (V1, V2C, V3), ACKSYS WaveManager & WaveViewer administration softwares |
Security | Firewall, DoS, https, MAC filtering, WPA2/WPA3-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), |
VPN (OpenVPN), SNMP V3, Wireless Intrusions Detection System (WIDS) | |
Ethernet networking | Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS |
Ethernet routing | Relay Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router |
LEDs Signaling | Radio : activity - status - DFS detection | Ethernet : link 10/100 - activity | Power - Diagnostic |
Power supply | +9VDC to +48VDC M12 connector 4-point A-coded & PoE 802.3af (15,4W) mode A/endspan compatible |
Consumption | Maximum average : 5.8 W / Recommended power supply : 7 W |
Mechanical specifications | Dimensions : 115 mm x 64 mm x 34 mm |
Weight : 319 g | |
IP rating | IP66 |
Environmental conditions | Operating temperature: -20°C to +60°C, storage : -40°C à +85°C, relative humidity: 0% to 99% (non-condensing) |

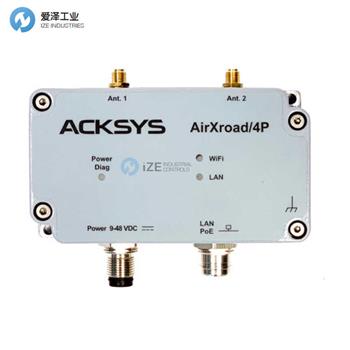

ACKSYS網關AirXroad/4P產品介紹
適用于汽車和重型應用的 11n WiFi 接入點、以太網橋接器、中繼器和 MESH 點
? 一體機：AP/客戶端/中繼器/Mesh/路由器
? E-mark 認證 (E2)
? WiFi 802.11a/b/g/n (MIMO 2T2R)，無線電數據速率高達 300 Mbps，2.4/5 GHz
? 簡單安全的配置：Web 瀏覽器 (HTTPS)、SNMPV3、WaveManager
? 操作系統：WaveOS
? 直流電源輸入（+9VDC 至 +48VDC）和 PoE 802.3af
? 多通道快速漫游（在客戶端模式下）
? 防震防震堅固的鋁制外殼 IP66 密封等級
? 電子標記（ECE R10 認證，用于集成到車載車輛中）
11n WiFi access point, Ethernet bridge, repeater & MESH point for automotive & heavy duty applications
? All-in-one : AP/client/repeater/Mesh/router
? E-mark certified (E2)
? WiFi 802.11a/b/g/n (MIMO 2T2R), radio data rate up to 300 Mbps, 2.4/5 GHz
? Easy and secure configuration: web browser (HTTPS), SNMPV3, WaveManager
? Operating System : WaveOS
? DC power supply input (+9VDC to +48VDC) & PoE 802.3af
? Multichannel fast roaming (in client mode)
? Shock & vibration proof rugged aluminium enclosure IP66 seal rating
? E-marking (ECE R10 certification for integration in onboard vehicles)
