HILSCHER網關NL51N-DPL技術參數
Communication controller | NL 51N-DPL |
Type | netX 50 |
Memory | |
RAM | 8 MB SDRAM |
FLASH | 4 MB serial Flash, with bootloader,firmware and configuration |
PROFIBUS Interface | |
Transmission rate | 9,6 kBit/s up to 12 MBit/s |
Interface Type | RS-485 (connected to power supply potential) |
Connector | DSub-Plug 9-pin |
Automatic Baud rate detection | Not supported |
Ethernet communication | |
Data transport | TCP/IP |
Number of connections | max. 16 TCP connections at a time |
PROFINET IO Controller connections | 1 |
Ethernet Interface | |
Transmission rate | 10/100 MBit/s |
Interface Type | 100 BASE-TX, isolated |
Connector | RJ45- female |
Auto-Negotiation | supported |
Auto-Crossover | supported |
LED Display | SYS System Status |
Power supply | |
Voltage | 18 ... 30 V DC |
Current at 18 V | typ. 80 mA |
Current at 24 V | typ. 70 mA |
Current at 30 V | typ. 53 mA |
Connector | Mini-COMBICON -Socket 3,81 mm 2-pin |
Emission | CISPR 11 Class A |
Immunity | EN 61131-2: 2003 |
Environmental conditions | |
Temperature rang | 0 … + 50 °C |
Humidity | 0 … 85 % (no condensation allowed) |
Device | |
Dimensions (L x W x H) | 74,5 x 40,7 x 17,2 mm |
Weight | appr.35 g |
Mounting/Installation | onto PROFIBUS Socket |
Protection Class | IP 20 |
CE Sign | Yes |
Configuration | |
Software | SYCON.net |
Software | Ethernet-Device Setup |
HILSCHER網關NL51N-DPL介紹

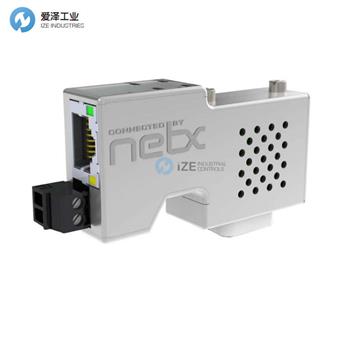

netLINK NL 51N-DPL 設備是基于 netX 技術的以太網網關。
netLINK PROXY 將任何 PROFIBUS-DP 從站集成到上級 PROFINET 網絡中。 由于其結構為帶有 DSub 外殼的插頭，它可以直接插入 PROFIBUS-DP-Slave 的 PROFIBUS-DP 接口，并通過 RJ45 連接器連接到 PROFINET 網絡。
在 PROFINET 方面，netLINK 的行為就像一個普通的 IO 設備。 從站的過程數據根據 PI 用戶組織的指南作為模塊分配到相應的 PROFINET 插槽/子插槽中。
The netLINK NL 51N-DPL device is an Ethernet Gateway based on netX technology.
netLINK PROXY integrates any PROFIBUS-DP Slave into a superordinate PROFINET network. Because of its structure as plug with a DSub housing, it can be plugged directly on to the PROFIBUS-DP interface of the PROFIBUS-DP-Slave and connected to the PROFINET network via the RJ45 connector.
On the side of PROFINET, the netLINK behaves just like a usual IO Device. The process data of the DP-Slave are assigned according to the guideline of the PI User Organization as a module in the respective PROFINET Slot/Subslot.

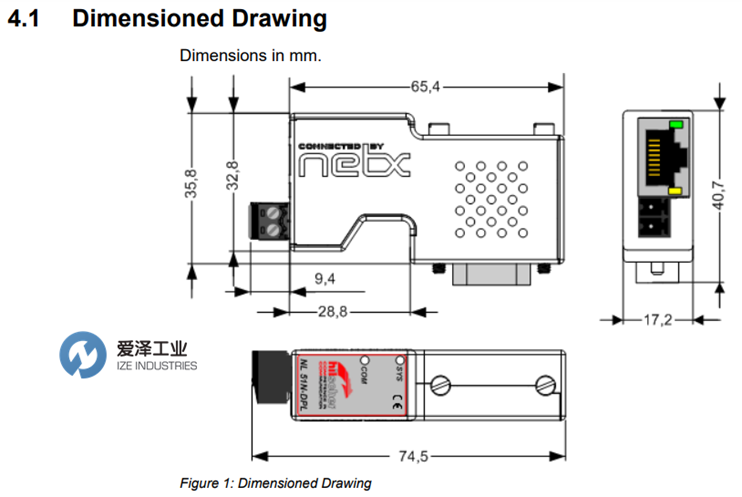

HILSCHER網關NL51N-DPL技術尺寸
