HIRSCHMANN交換機RS30系列技術參數
Product Description | |
Type | RS30 Series 24 Ports |
Construction | |
Mounting | DIN Rail |
Protection Class | IP20 |
Dimensions (WxHxD) | 110 x 131 x 111 mm |
Weight | Weight |
Ambient Conditions | |
Operating Temperature | 0°C to +60°C, -40°C to +70°C, or -40°C to +70°C (optional Conformal Coating) |
Storage/Transport Temperature | -40°C to +70°C |
Relative Humidity (non-condensing) | 10% to 95% |
Conformal Coating | Yes (variant dependent) |
Interfaces | |
V.24 Interface | 1 x RJ11 Socket |
USB Interface | 1 x USB (ACA21-USB Adaptor) |
Power Requirements | |
Operating Voltage | 12/24/48 V DC (9.6 to 60 V) and 24 V AC (18 to 30 V) (redundant) |
Regulatory Approvals | |
Safety of Industrial Control Equipment | cUL508 |
Hazardous Locations | ISA12.12.01 Class 1 Div 2 |
Transportation | NEMA TS2 |
Railway (track) | EN 50121-4 |
Substation | IEC 61850-3, IEEE 1613 |
HIRSCHMANN交換機RS30系列介紹
帶/不帶 PoE 的千兆以太網上行鏈路端口
RS30 緊湊型 OpenRail 管理型以太網交換機可以通過 2 個千兆端口和 8-16 或 24 個快速以太網上行鏈路端口適應 8 到 24 個端口的密度。
Gigabit Ethernet Uplink Ports with/without PoE
The RS30 compact OpenRail managed Ethernet switches can accomodate from 8- to 24-port densities with 2 Gigabit Ports and 8- 16- or 24- Fast Ethernet Uplink Ports.

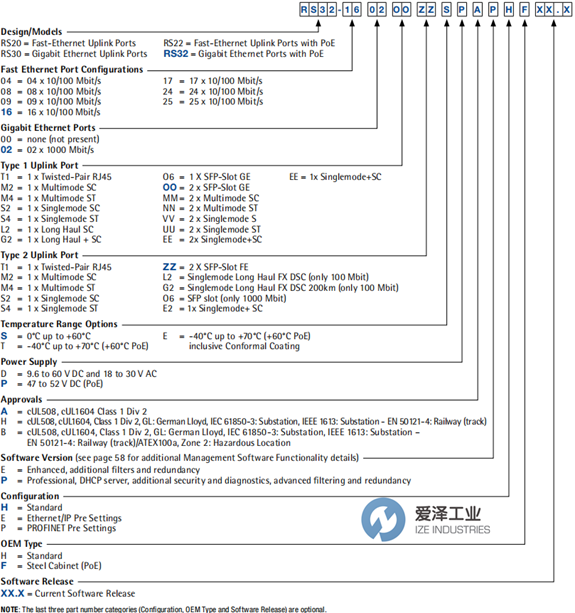

HIRSCHMANN交換機RS30系列選型
HIRSCHMANN交換機RS30系列其他常用型號：
HIRSCHMANN RS30-2402O6O6SDAEHX
HIRSCHMANN RS30-2502O6O6SDAEHF
HIRSCHMANN RS32-1602OOZZSPAPHF
HIRSCHMANN Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HIRSCHMANN交換機RS30-2402O6O6SDAEHX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HIRSCHMANN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HIRSCHMANN交換機RS30系列RS30-2402O6O6SDAEHX技術參數及選型
