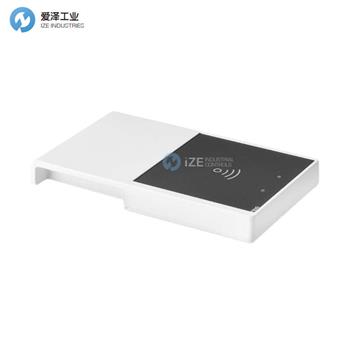

FEIG讀卡器ID CPR30+技術參數
Technical specifications | |
Dimensions (w x h x d) | 144 mm x 84 mm x 18 mm |
Weight | approx. 105 g |
Housing | Plastic (ASA) / Acrylic glass |
Color | white / black |
Protection class | IP42 |
Operating frequency | 13.56 MHz |
Transmitting power | 100 mW / 300 mW |
Supply voltage | 5 V, USB Bus powered |
Current consumption | max. 150 mA/220 mA |
Antenna | integrated |
Interface | USB Full-Speed (12 MBit/s) |
Indicators, optical | 2 LED (green / orange) |
Indicators, acoustic | Buzzer, integrated |
Supported transponders | ISO 15693, ISO 14443-A*/**, ISO 14443-B** |
Operation mode | Polling-Mode |
USB driver | Windows Server 2016 and 2019, Windows 10 and 11; 32 / 64 Bit |
Temperature range operation | ?20 °C up to +60 °C |
Temperature range storage | ?40 °C up to +85 °C |
Relative air humidity | max. 95 % (non-condensing) |
FEIG讀卡器ID CPR30+產品介紹
ID CPR30+（ISO 15693 和 ISO 14443-A/-B）在外形、安裝和功能上與 ID CPR30 兼容，因此符合 Zhaga Book 24 的合格讀卡器，通常用于照明行業的應用。
通過切換到新的“NFC 高功率模式”，用戶可以使用小型或弱轉發器實現更舒適的讀取范圍和更高的可靠性。
特殊功能：
- 近距離閱讀器可用于辦公室、工作站或 PoS
- Zhaga Book 24 兼容照明行業應用
- NFC 標準和高功率模式
- 多標簽協議閱讀器
- ISO 15693 和 ISO 14443-A/-B
- 支持 NFC 應用
ID CPR30+ (ISO 15693 and ISO 14443-A/-B) is form, fit and function compatible to ID CPR30 and thus qualified reader according to Zhaga Book 24, often used for applications in the lighting industry.
By switching to the new “NFC High Power Mode”, users achieve more comfortable reading ranges and more reliability with small or weak transponders.
Special features:
- Proximity Reader to be used in offices, work stations or at the PoS
- Zhaga Book 24 compatible at Lighting Industry Application
- NFC Standard- and High Power Mode
- Multi-tag protocol Reader
- ISO 15693 & ISO 14443-A/-B
- Supports NFC Applications
FEIG讀卡器其他常用型號：
FEIG ID CPR60
FEIG ID CPR70
FEIG ID CPR74
FEIG ID CPR30pro
FEIG ID CPR30+
FEIG ID CPR40.30-A
