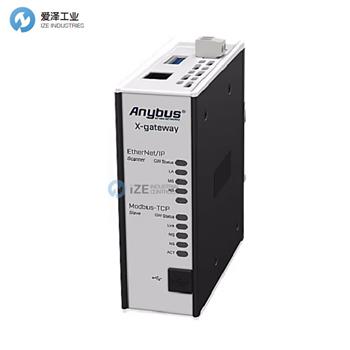

ANYBUS網關AB7669-F規格描述
General | |
Net Width (ERP) (mm) | 44 mm |
Net Height (ERP) (mm) | 127 mm |
Net Depth (ERP) (mm) | 114 mm |
Net Weight (ERP) (g) | 400 g |
Mounting | DIN-rail (EN 50022 standard) |
Current Consumption Type Value at Vcc Nom (mA) | 200mA @ 24V DC |
Current Consumption Max value at Vcc nom (mA) | 400mA @ 24V DC |
Input Voltage (V) | 24V DC (-20% to +20%) |
Power Connector | 2-pin, 5.08 Phoenix plug connector |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Isolation | Yes |
Operating Temperature °C Min | -25 °C |
Operating Temperature °C Max | 65 °C |
Storage Temperature °C Min | -40 °C |
Storage Temperature °C Max | 85 °C |
Housing Materials | Aluminum, Plastic |
Packaging Material | Cardboard |
EtherNet/IP Features | |
EtherNet/IP Mode | Scanner / Master |
EtherNet/IP Bandwidth | 10/100MBit |
EtherNet/IP Input Data Size | 509 bytes |
EtherNet/IP Output Data Size | 505 bytes |
EtherNet/IP No. Of Adapters | 64 |
Modbus-TCP Features | |
Modbus-TCP Mode | Slave / Server |
Modbus-TCP Supported Functionality | Modbus specification V1.0; Daisy chaining; QoS; Modbus TCP class 0, class 1 and partially class 2 slave functionality |
Modbus-TCP Bandwidth | 10/100 Mbit/s |
Modbus-TCP Input Data Size | 512 bytes |
Modbus-TCP Output Data Size | 512 bytes |
ANYBUS網關其他常用型號：
ANYBUS AB7669-F
ANYBUS AB7652-F
ANYBUS AB7650-F
ANYBUS AB7670-F
ANYBUS AB7695-F
ANYBUS AB7654-F
ANYBUS AB7673-F
ANYBUS AB7620-F
ANYBUS AB7649-F
ANYBUS AB7635-F
ANYBUS AB7632-F
ANYBUS AB7689-F
ANYBUS AB7679-F
ANYBUS AB7621-F
ANYBUS AB7639-F
ANYBUS AB7630-F
ANYBUS AB7623-F
ANYBUS AB7631-F
ANYBUS AB7662-F
ANYBUS AB7693-F
ANYBUS Gateway NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANYBUS網關AB7669-F疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANYBUS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: jjxdch.cn.
ANYBUS網關AB7669-F產品介紹
