LJU手持式編程器MU-705 60760967技術參數
General | |
Type | MU-705 |
Item number | 3233528 |
WNR | CWA-60060967 |
Housing | impact-resistant plastic |
Color | green-blue as per RAL 5020 |
Dimensions H x W x D | 230 mm x 97 mm x 58 mm |
Weight | 460 g |
IP protection class | IP 30 |
Display | LCD resolution 128 x 64 |
Operation buttons | 18 |
Electrical data | |
Supply voltage | Battery (rechargeable) 4.8 V NiMH / 2000 mAh |
Average power consumption | approx. 160 mA |
Data transmission | |
Infrared type | IR / IRDA standard |
Transmission rate | 9600 / 62500 bit/s |
Range | 1 m |
Angle of reflected beam | ± 16° |
Ambient conditions | |
Operating temperature | + 10 °C to + 50 °C |
Storage temperature | - 10 °C to + 50 °C |
Relative humidity | < 80% non-condensing |
User sets | |
Type | Set MU-705 |
Item number | 3233721 |
WNR | CWA-60760967 |
Content | 1 x MU-705 (3233528) |
LJU手持式編程器MU-705系列介紹介紹
手持式編程設備 MU-705 用于對配有電子車輛控制器并附帶軟件的組件進行編程、參數化和手動控制。
數據通過紅外線在 MU-705 和控制器之間傳輸，因此與帶有相應軟件的 6xx、7xx 產品線的控制器以及最新一代 8xx 的所有控制器兼容。
手持式編程設備主要用于參數化和更新車輛控制器。此外，它還具有調用車輛信息、手動控制車輛等功能。
此外，通過將 MU 705 連接到安裝了 MU-705 實用軟件的計算機（單獨說明），可以備份數據和修改參數化數據。
MU-705 的各個功能通過菜單導航進行控制。

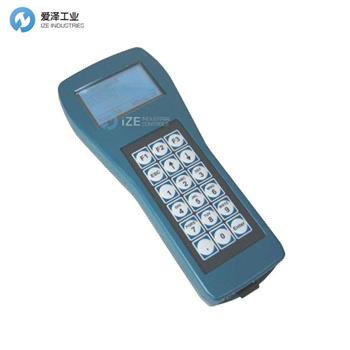

The hand-held programming device MU-705 is used to programming, parameterizing and manually control components that are fitted with an electronic vehicle controller and have the accompanying software.
The data is transmitted between the MU-705 and the controller by means of infrared and is thus com patible with the controllers of the product lines 6xx, 7xx with corresponding software and with all con trollers of the latest generation 8xx.
The hand-held programming device was developed primarily for parameterizing and updating the vehi cle controllers. Moreover, it has features like e.g. calling of vehicle information, manual controlling of vehicles etc.
Moreover data backups and modification of parameterization data are possible by connecting the MU 705 to a computer which has the MU-705 Utility Software installed on it (separate description).
The individual functions of the MU-705 are controlled by means of menu navigation.
LJU手持式編程器MU-705系列其他常用型號：
LJU 3233528 MU-705
LJU 3226594 MU-705
LJU 3226595 MU-705 TF
LJU 60760967 MU-705
LJU HAND-HELD PROGRAMMING DEVICE NEW + ORIGINAL+ ONE YEAR WARRANTY
