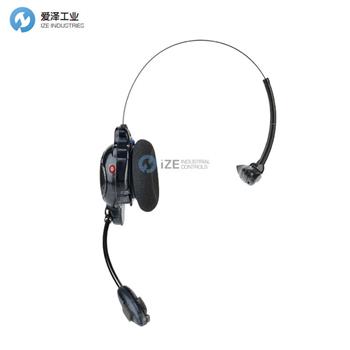

CLEAR COM無線耳機WH220技術參數
Technical Specifications | |
Audio | |
Channels: | 2 audio channels |
Frequency Range: | 2400MHz – 2483.5MHz |
Frequency Response: | 200Hz –3.5kHz |
Antenna: | Internal, horizontal/vertical diversity |
Headset Connector: | 4-pin, mini-DIN |
Microphone: | Electret |
Headset Output: | 160mW into 32Ω |
Communication Security: | 64-bit encryption |
System Distortion: | <2% |
Controls: | Power, Volume-Up, Volume-Down, IC1, IC2, ISO |
Indicators: | Dual-color LED (red/green) |
Battery Requirements: | 3.6V lithium-ion |
Battery Life: | Up to 12 hours |
Transmitter | |
Type: | Frequency Hopping, Spread Spectrum (FHSS) |
Transmit Power: | 100mW burst |
Modes: | Momentary or Latch |
Type: | Gaussian filtered FSK, TDMA |
Frequency Stability: | 13 ppm |
Harmonics/Spurious: | Exceeds FCC and ETSI specifications |
Receiver | |
Type: | Frequency Hopping, Spread Spectrum (FHSS) |
RF Sensitivity: | <-90dBm w 10-3 BER |
Frequency Stability: | 13ppm |
Distortion: | <2% |
Environmental | 32° to +122°F (0° to +50°C) |
Weight | 5.7oz (0.16kg) including battery |
CLEAR COM無線耳機WH220產品介紹
WH220 無線耳機與 DX100、DX121 和 DX210 數字無線系統兼容。
? 單通道或雙通道操作
? 2.4GHz 頻率范圍
? 免提通信
? 5 kHz 寬帶音頻
? 單耳輕便設計
? 堅固可靠
? 電池續航時間長達 12 小時
The WH220 wireless headset is compatible with the DX100, DX121, and DX210 digital wireless systems.
? Single- or Two-channel operation
? 2.4GHz frequency range
? Hands-free communications
? 5 kHz wide band audio
? Single-ear, light-weight design
? Rugged and reliable
? Up to 12 hours of battery life
