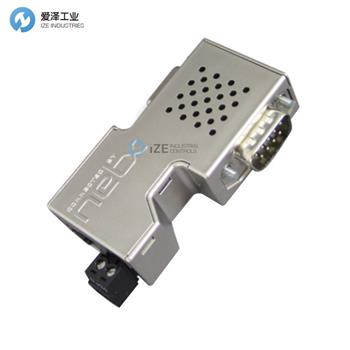

HILSCHER網關NL50-MPI技術參數
Product | |
Product name | NL 50-MPI |
Part number | 1701.43 |
Brief description | S7-200/300/400 Ethernet Programming Connector |
Function | Monitoring, programming and visualizing S7-PLCs over Ethernet |
Communication controller | |
Type | netX 50 |
Integrated Memory | |
RAM | 8 MB SDRAM |
FLASH | 4 MB serial flash, with boot loader, firmware und configuration |
Power suppl | |
Supply voltage | 24 V DC ± 6 V DC |
Current (typically) | 57 mA (at 24 V), 72 mA (at 18 V), 48 mA (at 30 V) |
Connector | Connector for power supply from PLC: via D-Sub plug from PLC, 9-pin |
Connector for external power supply | Mini-COMBICON socket, 3.81 mm, 2-pin |
HILSCHER網關其他常用型號：
HILSCHER NL 51N-DPL
HILSCHER NT 50-MPI
HILSCHER NL 51N-DPL
HILSCHER Gateway NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HILSCHER網關NL50-MPI的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HILSCHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HILSCHER網關NL50-MPI技術參數及尺寸
