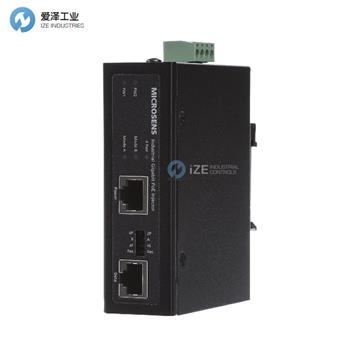

MICROSENS交換機MS657032X-24技術參數
Specifications | |
IEEE Standard | IEEE 802.3 10Base-T Ethernet |
Network Connector : | 1x RJ-45 10/100/1000Base-T Data |
Network Cable | UTP/STP above Cat.5e Cable |
Protocol | CSMA/CD |
Power Supply | 2 Redundant power source |
Power Consumption | 1 W @24/48 VDC full load, without POE |
POE power | Maximum POE power 72 W at 56 VDC input |
Operating Temperature | -40℃...75℃ fully tested |
Operating Humidity | 5% to 95% (Non-condensing) |
Storage Temperature | -40℃...85℃ |
MTBF (mean time between failure) | 510,304 h (MIL-HDBK-217F) at 25°C |
Housing | Rugged Metal, IP30 Protection |
Case Dimension (LXWXD) | 103.5 mm x 32 mm x 81.5 mm |
Installation mounting | DIN rail mounting and wall mounting |
MICROSENS交換機其他常用型號:
MICROSENS MS657031X
MICROSENS MS657032X-24
MICROSENS MS657032X
MICROSENS MS657034X
MICROSENS MS656030
MICROSENS MS657035X
MICROSENS SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MICROSENS交換機MS657032X-24的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for MICROSENS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MICROSENS交換機MS657032X-24技術參數介紹
